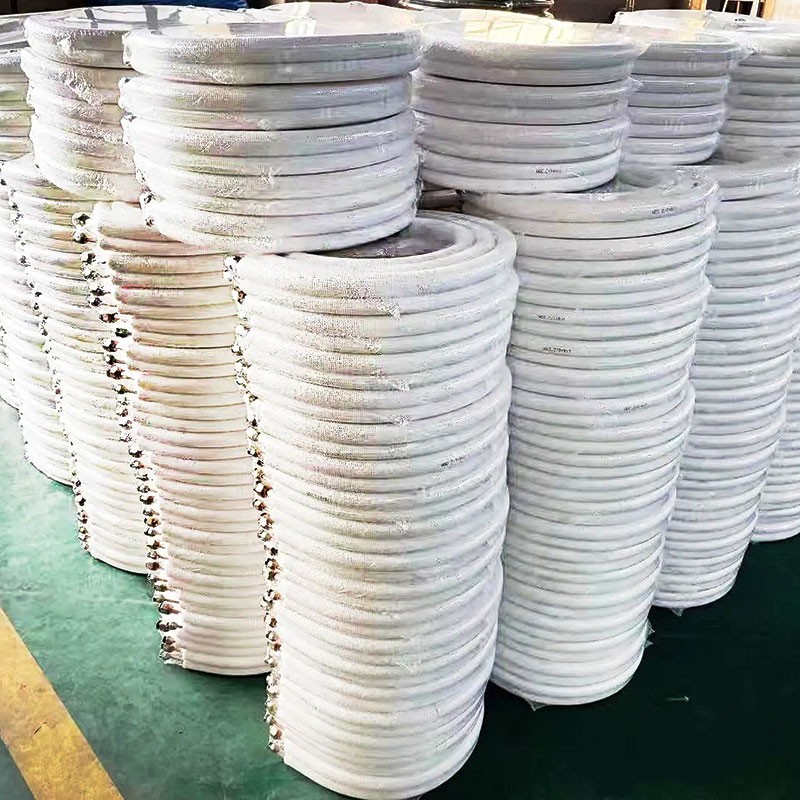

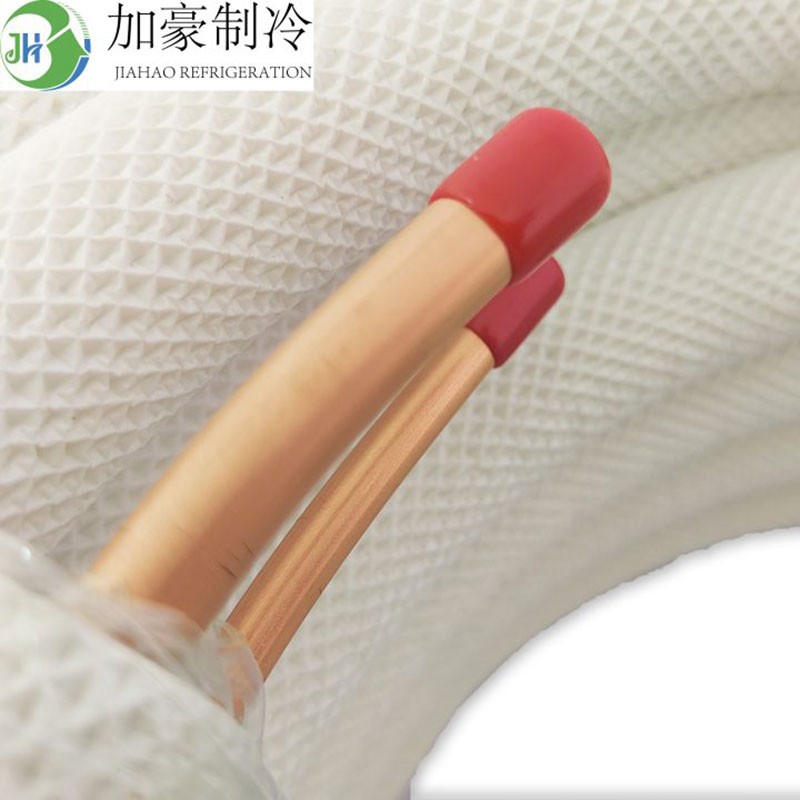

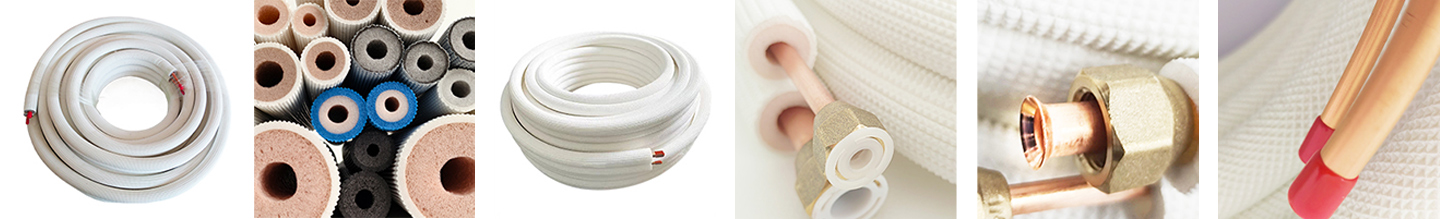

• Jiahao White PE Insulated Copper Pipe Coil manufactured to Australian Standard AS/NZS 1571 is suitable for use in domesticsplit system air conditioners with high pressure refrigerants R410A and R32.

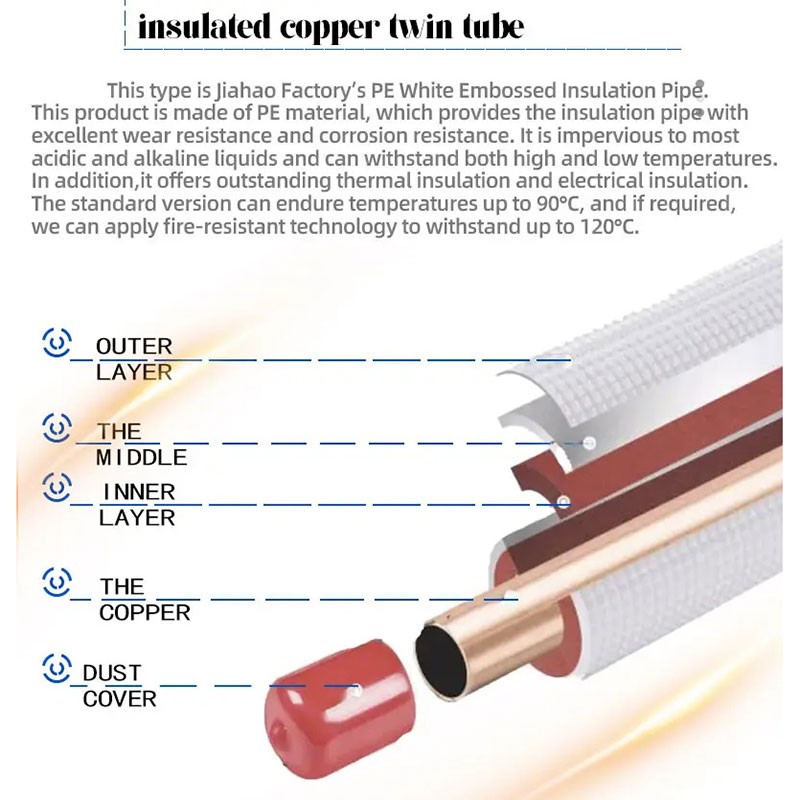

• Produced to be more durable with embossed polyethylene flm and crossed-linked, foamed closed cell polyethylene outer insulation.

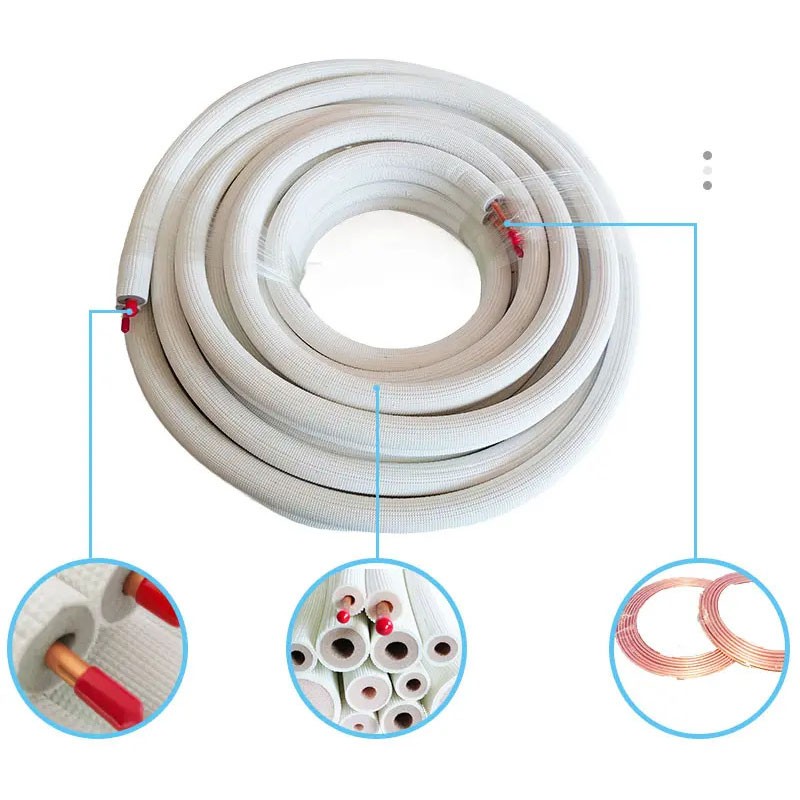

• The 10/16/33/50/65ft pre-insulated annealed copper pair coil with continous marking every meter makes it easy to install and save time & money as no measurement, glue or tape is needed.
■ Features
·High Quality Insulation Pipe:
- Several types: PE /XPE/TitanRubber, two layers / single layer, etc.
- Thickness 8mm-20mm.
- Anti-UV, Low water absorption, Low thermal conductivity.
- Surface can be printed with words.
- Standards comply with EN13501,M1.ASTM E84.AS1530.RoHS. etc

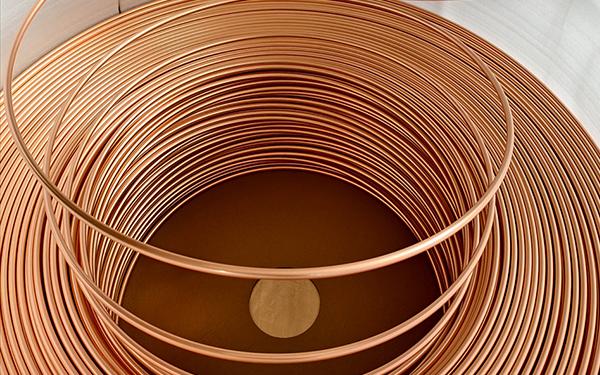

·All sizes and thicknes of high quality copper tubes, as your requirements.Standards comply with EN12735,IS H3300,ASTM B280,AS1571.RoHs, etc.
- Type: single or pair types.
- With or without fared nuts.
- Length: 1~50 meters.
- Suitable for any gas: R22,R407C,R410A,R404A, R507C,etc.
- Light weight, good thermal conductivity.
- Easy and quick installation, saving time and money, easy transport.
- Seamlessness prevents from moisture entry or dripping.
- Can be with accessories: Nut, Drain pipe Tape, Pvc wall.fix tape,joint insualion pipe PC walhole sleve and cap, Electrical tape,Seal plasteretc.
■ Specification
Product Code | Copper Tube Outside Diameter & Wall Thickness(mm) | Copper Tube Outside Diameter(inch) | Length(ft) | R-Values | R410A&R32 Rated |
JHC2320 | 6.35x0.81+9.52x0.81 | 1/4+3/8 | 65 | 0.26 | Yes |
JHC2420 | 6.35x0.81+12.70x0.81 | 1/4+1/2 | 65 | 0.26 | Yes |
JHC2520 | 6.35x0.81+15.88x1.02 | 1/4+5/8 | 65 | 0.26 | Yes |
JHC3520 | 9.52x0.81+15.88x1.02 | 3/8+5/8 | 65 | 0.26 | Yes |
JHC3620 | 9.52x0.81+19.05x1.14 | 3/8+3/4 | 65 | 0.26 | Yes |
JHC4620 | 12.70x0.81+19.05x1.14 | 1/2+3/4 | 65 | 0.26 | Yes |
■ Insulation Technical Data
Material | Highly flexible paired polyethylene |
Thermal Conductivity | 0.035W/m.K.at 0℃ |
| Tensile Strength | 55.8N/cm2(kgf/cm2) |
Water Absorption | 0.0051 MAX g/100cm2 |
Thickness Shrinkage | 6%MAX@120±5℃ |
Appearance Density | Inner Tube:0.028g/cm3;Outside Tube:0.0303g/cm3 |
Moisture Permeability | 8.6x10-11g/(m2.s.Pa) |
■ Copper Tube Safe Working Pressure
| Copper Tube Outside Diameter& Wall Thickness(mm) | Safe Working Pressure(kpa) | ||
| 50℃ | 65℃ | 75℃ | |
6.35x0.8 | 10635 | 9545 | 8820 |
9.52x0.8 | 6800 | 6105 | 5640 |
12.70x0.8 | 4995 | 4480 | 4140 |
15.88x1 | 5030 | 4515 | 4170 |
19.05x1.1 | 4697 | 4181 | 3895 |
■ Non-Standard Customization
Top Brand Products
99.9% Pure CopperStandard Compliance
Customizable

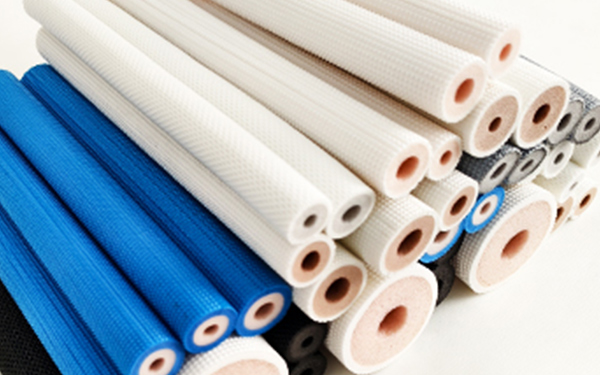

Multiple Colors
Thickness Ranging from 8mm to 20mm
Suitable for Any Gas
Can be Equipped with Accessories
Surface Printable

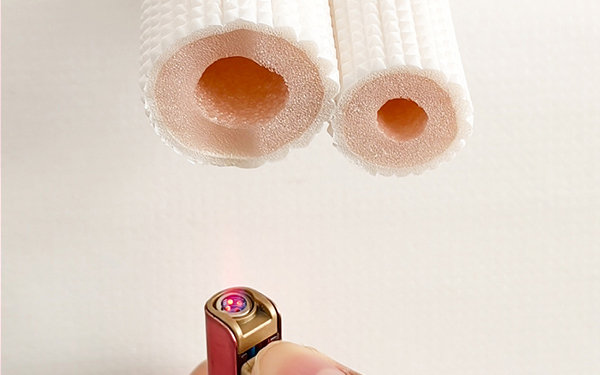

Flame Retardant Insulation
Temperature Range: 90℃ -120℃
Wear and Corrosion Resistance
Electrical Insulation
