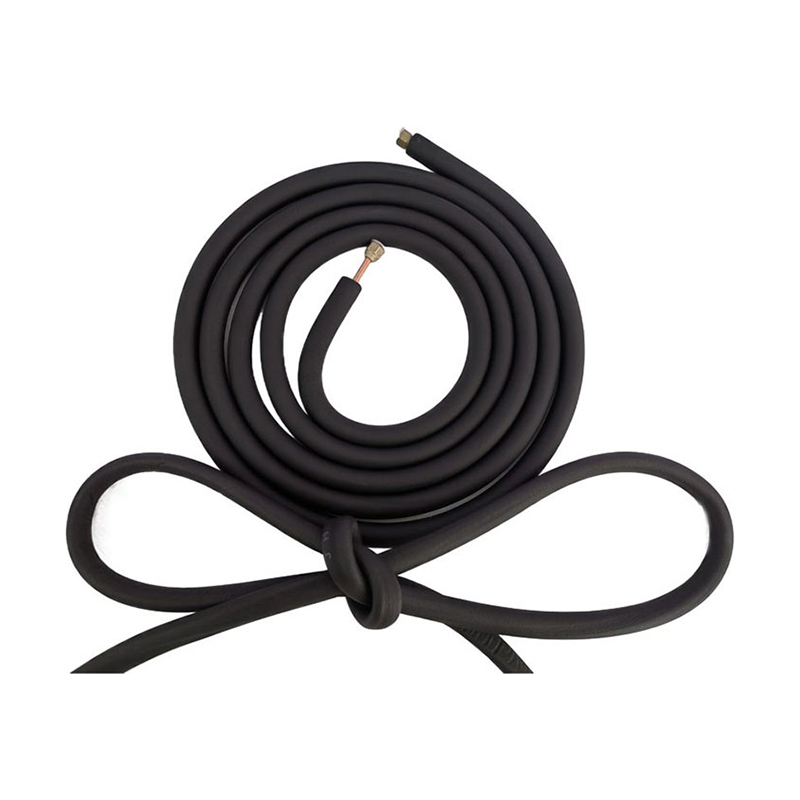

R32 dedicated air conditioning connecting pipe is a type of connecting pipe designed specifically for air conditioners using R32 refrigerant. R32 refrigerantis an environmentally friendly refrigerant with high energy efficiency and low global warming potential(GWP), and is therefore widely used in modern air conditioning systems.
■ Features
· High quality insulation pipe:
- Several types: PE / ХPE / Titan / Rubber, two layers / single layer, etc
- Thickness 8mm-20mm.
- Anti-UV, Low water absorption, Low thermal conductivity
- Surface can be printed with words.
- Standards comply with EN13501, M1. ASTM E84. AS1530. RoHS. etc
· All sizes and thicknes of high quality copper tubes, as your requirements. Standards comply with EN12735, IS H3300, ASTM B280, AS1571. RoHs, etc.
· Typе: single or pair types.

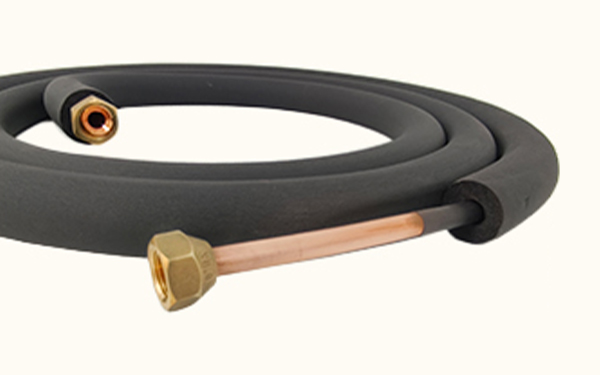

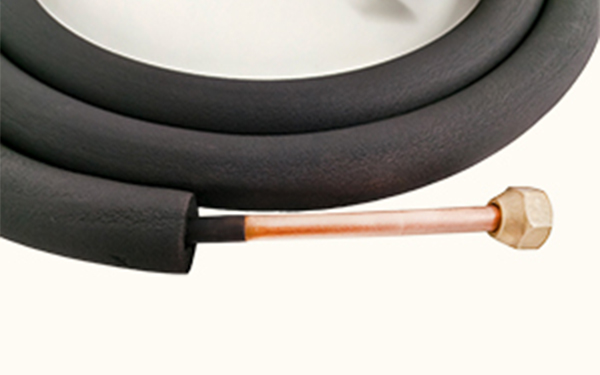

· With fared nuts
· Length: 1~50 meters.
· Suitable for any gas: R22, R32, R407C, R410A, R404A, R507C, etc
· Light weight, good thermal conductivity
· Easy and quick installation, saving time and money, easy transport
· Seamlessness prevents from moisture entry or dripping.
· Can be with accessories: Nut, Drain pipe Tape, PVC wall.fix tape, joint insualion pipe PC walhole sleve and cap, Electrical tape, Seal plasteretc
Characteristic
• Environmental friendliness: R32 refrigerant has a lower Global Warming Potential (GWP)and is more environmentally friendly compared to traditional R410A refrigerants.
• Energy efficiency ratio: R32 refrigerant has a high energy efficiency ratio, which can provide better refrigeration effect while reducing energy consumption by 1.
• Flammability: R32 has a certain degree of flammability, so special attention should be paid to safety measures during installation and maintenance.
■ Specification
Product Code Cope | Copper Tube Outside Diameter & Wall Thickness (mm) | Copper Tube Outside Diameter (inch) | Length (ft) | R-Values | R410A & R32 Rated |
13mmWallThicknessInsulation | |||||
JHR2320T13 | 6.35x0.81+9.52x0.81 | 1/4+3/8 | 65 | 0.70 | Yes |
JHR2420T13 | 6.35x0.81+12.70x0.81 | 1/4+1/2 | 65 | 0.60 | Yes |
JHR2520T13 | 6.35x0.81+15.88x1.02 | 1/4+5/8 | 65 | 0.60 | Yes |
JHR3520T13 | 9.52x0.81+15.88x1.02 | 3/8+5/8 | 65 | 0.60 | Yes |
JHR3620T13 | 9.52x0.81+19.05x1.14 | 3/8+3/4 | 65 | 0.60 | Yes |
19mm Wall Thickness Insulation | |||||
JHR2318T19 | 6.35x0.81+9.52x0.81 | 1/4+3/8 | 59 | 1.10 | Yes |
JHR2418T19 | 6.35x0.81+12.70x0.81 | 1/4+1/2 | 59 | 1.00 | Yes |
JHR2518T19 | 6.35x0.81+15.88x1.02 | 1/4+5/8 | 59 | 1.00 | Yes |
JHR3518T19 | 9.52x0.81+15.88x1.02 | 3/8+5/8 | 59 | 1.00 | Yes |
■ Insulation Technical Data (AS1530.3-1999)
Material | Highly flexible 13mm and 19mm paired tubular closed cell elastomeric nitrile rubber foam |
Thermal Conductivity | 0.033W/m.K.at 23℃ |
Water Absorption | 0.0030 g/100cm2 |
Spread of Flame Index | 0 |
Smoke Development Index | 3 |
Working Temperature | -40C to+105℃ Range |
■ Copper Tube Safe Working Pressure
Copper Tube Outside Diameter & Wall Thickness (mm) | 50℃ | Safe Working Pressure (kpa) 65℃ 75℃ |
6.35x0.8 | 10635 | 9545 8820 |
9.52x0.8 | 6800 | 6105 5640 |
12.70x0.8 | 4995 | 4480 4140 |
15.88x1 | 5030 | 4515 4170 |
19.05x1.1 | 4697 | 4181 3895 |
■ Non-Standard Customization

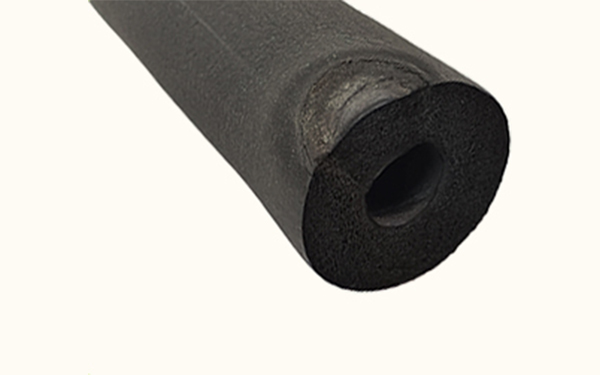

Closed cell structure, B1 level flame retardant (self extinguishing upon ignition)
The maximum working pressure of R32 air conditioner can reach 4.2mpa, and the connecting pipe of R32 dedicated air conditioner needs to withstand higher pressure, usually designed with thickened pipe wall
The air conditioning pipeline is often exposed outdoors, and the R32 dedicated connecting pipe extends its service life by using corrosion-resistant materials and adding protective coatings.
During the installation process, it is necessary to bend the conduit. The R32 dedicated connecting conduit is made of materials such as copper andaluminum to improve its bending and ductility, ensuring that it is bent without being flattened.
