An air conditioner condenser pad forms the foundation platform that supports outdoor HVAC units while protecting them from ground moisture, vibrations, and settling issues. This essential component ensures proper equipment alignment and optimal system performance throughout the unit's lifespan.

Industry experts highlight several key benefits:

• - Standardized condenser pad designs provide stable support for various unit sizes and configurations.

• - Proper installation prevents costly damage from ground settling, moisture infiltration, and pest intrusion.

• - Quality materials ensure long-term durability with minimal maintenance requirements.

• - Level installations improve system efficiency and reduce operational noise significantly.

• - Compliance with manufacturer specifications protects equipment warranties and ensures optimal performance.

Every HVAC system relies on proper foundation support to maintain stability and protect expensive components throughout operation.

Key Takeaways

• • Air conditioner condenser pads provide stable foundation support for outdoor HVAC units, preventing damage from moisture and ground settling.

• • They follow strict dimensional standards to accommodate various unit sizes while ensuring proper clearances and drainage.

• • Condenser pads work with leveling techniques and drainage systems to maintain equipment stability and prevent operational issues.

• • Regular inspection and maintenance of hvac condenser pad installations prevent problems and extend system lifespan.

• • Damaged or improperly leveled pads must be corrected promptly to maintain system efficiency and prevent equipment damage.

• • High-quality materials like composite polymers and reinforced concrete provide excellent durability and weather resistance.

• • Certified installations from trusted suppliers guarantee reliable performance in various climate conditions.

• • Proper use of condenser pads and securing methods supports efficient, quiet, and long-lasting HVAC operation.

What Is a Condenser Pad?

Basic Structure

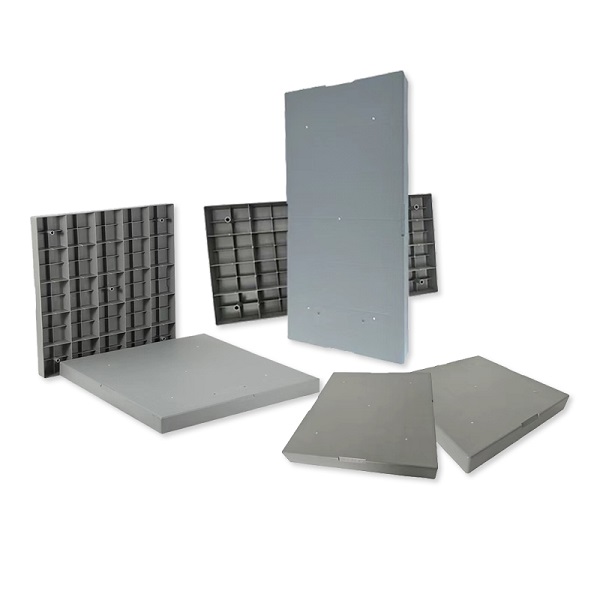

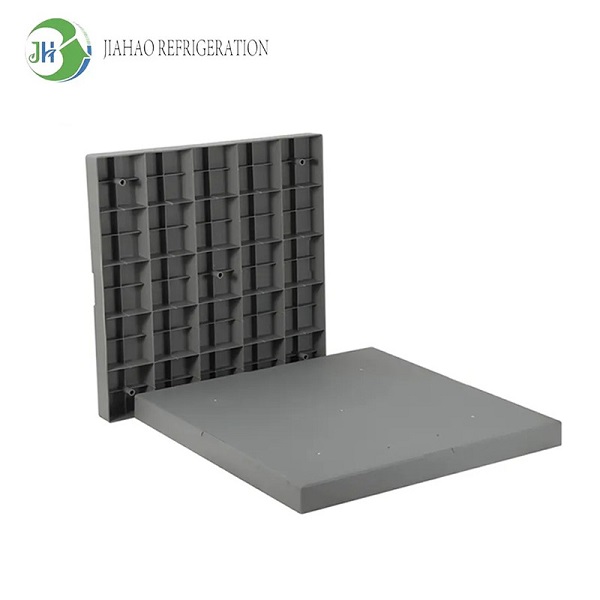

An air conditioner condenser pad is a robust foundation platform designed to support outdoor HVAC units with precision and stability. Manufacturers typically use composite materials, reinforced concrete, or high-density polymers to produce these pads, providing excellent strength and weather resistance. Each standard residential pad weighs between 20-50 pounds depending on size and material composition. The surface features textured or ribbed designs that prevent equipment from sliding while promoting proper drainage. Top-quality pads include integrated drainage channels and anti-vibration properties. Bottom surfaces often incorporate raised patterns that improve ground contact and prevent settling. This design ensures that hvac condenser pads can support equipment weights ranging from 150-500 pounds safely.

Note: Modern composite materials offer superior performance compared to traditional concrete, with better vibration dampening and resistance to cracking from freeze-thaw cycles.

Placement on HVAC Systems

Air conditioner condenser pads are positioned directly beneath outdoor condensing units at ground level. Installation requires proper positioning with adequate clearances on all sides for maintenance access and airflow. The pad extends 3-6 inches beyond the unit footprint in each direction, providing stability and protecting against settling. Proper placement considers factors like drainage patterns, utility line access, and local building codes.

Larger commercial systems may require custom-sized pads or multiple standard units joined together. These installations often include additional features like equipment anchoring points and enhanced drainage systems.

Key Functions

Condenser pads serve several critical roles in HVAC system operation and protection. They provide stable foundation support that prevents equipment damage from ground movement and settling. The elevated platform protects units from ground moisture, debris, and pest infiltration that could compromise system performance.

• - Units remain level and properly aligned for optimal refrigerant flow and system efficiency.

• - Vibration dampening reduces noise transmission to occupied spaces and neighboring properties.

• - Integrated drainage prevents water accumulation that could cause corrosion or electrical issues.

Hvac condenser pads also ensure compliance with manufacturer warranty requirements and local building codes. Their standardized design accommodates various equipment types while maintaining consistent installation practices. This compatibility supports efficient service and maintenance throughout the system's operational life.

Tip: Always verify that the pad extends beyond the unit footprint on all sides to provide adequate support and prevent edge loading that could cause cracking.

Understanding how air conditioner condenser pads function helps technicians maintain system reliability and efficiency. By serving as the stable foundation for critical HVAC equipment, proper pad selection and installation directly impact system performance and longevity.

Importance

Structural Role

Condenser pads form the foundation backbone of every outdoor HVAC installation. These stable platforms sit beneath condensing units and distribute equipment weight evenly across the ground surface. They create a level mounting system that maintains proper equipment alignment throughout the system's operational life. This stability gives the HVAC system its performance reliability and prevents costly damage from ground movement. Without proper foundation support, air conditioning units cannot maintain optimal refrigerant flow or withstand environmental stresses. The materials used—composite polymers or reinforced concrete—are chosen for their ability to resist weathering, settling, and thermal expansion. Local building codes set strict requirements for pad installations and clearances. If installations do not meet these standards, systems may experience performance issues or warranty voidance. Regular inspections help ensure that each installation maintains its structural integrity over time. Damaged or settled pads can affect system alignment, making units less efficient and potentially unsafe.

Note: The stable design of condenser pads allows HVAC systems to maintain proper refrigerant levels and component alignment. This design also supports the use of anti-vibration mounting and drainage systems that keep equipment operating smoothly.

Safety in HVAC System Operation

Air conditioner condenser pads play a crucial role in keeping HVAC systems and property safe. When units are installed, leveled, or serviced, the pads provide secure foundation support for technicians and equipment. This reduces the risk of accidents during installation and maintenance. If a condenser pad fails or settles, the unit could shift or become unstable, creating safety hazards and equipment damage. For this reason, HVAC professionals check pad condition before every service call. They look for signs of settling, cracking, or water damage. Only systems with stable, properly installed pads are considered safe for operation. This careful attention helps prevent accidents and protects valuable HVAC investments.

Regular maintenance practices include:

• - Checking for structural damage or deterioration

• - Ensuring proper drainage and water management

• - Verifying level installation and equipment alignment

• - Immediate correction of any identified issues

Equipment Protection and Efficiency

Condenser pads enable HVAC systems to operate efficiently across different installation conditions and environments. Their standardized design means that any properly sized pad can support compatible equipment safely. Professional installations use pads to elevate units above ground level, protecting against moisture, debris, and pest infiltration. Proper drainage prevents water accumulation that could cause electrical problems or corrosion. Level installation ensures optimal refrigerant flow and system efficiency. This foundation support saves energy costs by maintaining peak system performance according to energy efficiency guidelines. The use of standardized air conditioner condenser pads ensures that equipment remains stable and protected regardless of environmental conditions.

Tip: Quality foundation support allows HVAC systems to maintain manufacturer specifications and warranty coverage while delivering optimal comfort and efficiency.

How They Work

Support and Stabilization

HVAC systems rely on condenser pads for stable foundation support and proper equipment alignment. These platforms distribute unit weight evenly across their surface area, preventing point loading that could cause ground penetration or settling. The textured surface design prevents horizontal movement while maintaining solid contact with the equipment base. Professional installations use leveling techniques to ensure perfect alignment. The pad design accommodates thermal expansion and contraction without affecting system performance.

• - Foundation pads and mounting systems work together to support heavy equipment loads.

• - High-strength materials help resist environmental stresses and mechanical forces.

• - Some installations include vibration isolation features to reduce noise transmission.

Condenser pads must withstand significant loads while maintaining dimensional stability. This strength allows proper support for units ranging from residential systems to large commercial equipment. The standardized design ensures that installation equipment and techniques work consistently across different projects.

Tip: Always verify that the pad surface remains level after seasonal temperature changes and ground freeze-thaw cycles.

Leveling Mechanisms

Proper leveling plays a vital role in maintaining HVAC system efficiency and preventing operational problems. Quality installations feature adjustable leveling techniques that compensate for minor ground irregularities. Professional technicians use precision instruments to verify level installation in all directions. The foundation system distributes loads evenly while maintaining equipment alignment.

Air conditioner condenser pads serve as the primary leveling platform. They provide a stable reference surface that accommodates minor adjustments during installation. The standardized dimensions allow for consistent leveling procedures across different unit sizes. This system prevents refrigerant flow issues that can reduce efficiency or cause compressor damage. Proper leveling techniques ensure reliable operation regardless of ground conditions or seasonal changes.

Drainage and Moisture Management

Effective drainage systems integrated with condenser pads prevent water-related damage and maintain system reliability. The pad design incorporates slight slopes and drainage channels that direct water away from equipment and electrical components. Professional installations include proper grading that prevents water accumulation around the unit foundation.

There are several drainage approaches used with hvac condenser pads:

• • Integrated channels: Built-in drainage patterns direct water flow away from equipment

• • Sloped surfaces: Gentle grades promote natural water runoff without affecting stability

• • Perimeter drainage: Surrounding systems manage groundwater and surface runoff

• • Elevated installation: Proper height above grade prevents flooding during heavy precipitation

Drainage systems must accommodate local climate conditions and soil characteristics. Each installation should include measures to prevent ice formation and water accumulation that could affect system operation. The materials and design specifications ensure long-term performance in various weather conditions. This comprehensive approach allows for safe operation, preventing water damage, and maintaining optimal system efficiency.

Note: The interaction between drainage design and foundation support prevents moisture-related problems while maintaining stable equipment installation throughout varying weather conditions.

Types and Materials

Material Options

Manufacturers choose different materials for condenser pads based on durability requirements, climate conditions, and installation preferences. Composite materials excel in residential applications due to their lightweight construction, excellent weather resistance, and integrated features. These materials maintain structural integrity in temperature extremes ranging from -40°F to 150°F. Concrete options provide maximum load capacity and longevity for commercial installations or areas with challenging soil conditions.

To meet performance and durability standards, quality condenser pads must resist environmental stresses including freeze-thaw cycles, UV exposure, and chemical exposure from lawn treatments. Production follows strict quality control procedures that verify material composition, dimensional accuracy, and load-bearing capacity. Advanced composite formulations include reinforcing fibers and UV stabilizers. Manufacturing processes such as compression molding or casting ensure consistent density and strength characteristics. Each product batch undergoes testing for compressive strength, thermal stability, and weather resistance to guarantee reliable performance according to industry standards in demanding applications.

Manufacturing Methods

The production of air conditioner condenser pads involves several precision manufacturing steps. Facilities begin by selecting raw materials that meet performance specifications for strength and weather resistance. Technicians control material composition and eliminate impurities to maintain consistent quality. During forming processes, they manage temperature, pressure, and curing parameters to create pads without defects or weak points.

After forming, products undergo controlled curing or cooling phases. The timing and environmental conditions are optimized to prevent internal stresses or dimensional changes. Once removed from molds, pads receive finishing treatments including surface texturing and quality inspections. These steps improve both performance characteristics and resistance to environmental degradation. Quality control teams analyze material properties and conduct load testing to verify specifications. This ensures every condenser pad meets strict standards for reliability and longevity.

Tip: Proper manufacturing controls and quality testing help condenser pads deliver consistent performance throughout their service life in various climate conditions.

Standard vs. Custom Sizes

Air conditioner condenser pads come in standardized dimensions that accommodate most residential and light commercial applications. Standard sizes include common configurations that match popular equipment footprints.

• Standard residential sizes:

  • - 24" x 24" for compact units and heat pumps

  • - 30" x 30" for typical residential systems (ac condenser pad 30x30)

  • - 36" x 36" for larger residential and small commercial units (ac condenser pad 36x36)

  • - 42" x 42" for commercial-grade installations

• Custom applications:

  • - Multiple units joined for large equipment

  • - Special shapes for confined installation spaces

  • - Enhanced thickness for heavy commercial systems

  • - Integrated mounting features for specific equipment types

These size options help contractors match pad dimensions to specific equipment requirements. The standardized approach simplifies inventory management while ensuring adequate support for various HVAC systems.

Note: Both standard and custom condenser pads must meet the same performance criteria for load capacity, weather resistance, and dimensional stability to ensure safe equipment support.

Installation and Leveling Standards

Site Preparation Requirements

Professional condenser pad installation begins with proper site preparation that ensures long-term stability and performance. The process requires careful attention to soil conditions, drainage patterns, and local building codes. Proper preparation prevents settling issues and maintains equipment alignment throughout the system's operational life.

Site preparation follows established procedures that accommodate various ground conditions. Workers evaluate soil stability and drainage characteristics before beginning excavation. They identify utility lines and obtain required permits. During excavation, crews remove organic materials and create stable base conditions. The preparation includes proper depth calculations based on local frost line requirements and soil bearing capacity specifications.

Note: Thorough site preparation reduces the risk of future settling or drainage problems that could affect HVAC system performance.

Material quality significantly impacts installation success and long-term reliability. Professional installers select base materials with appropriate load-bearing characteristics and drainage properties. The process includes proper compaction techniques that create uniform support conditions. Workers verify base dimensions and elevation to match equipment specifications. These steps guarantee that installations provide stable, level foundations that protect valuable HVAC equipment.

Professional Installation Process

The installation process includes several critical stages that ensure reliable foundation support:

• • Excavation and base preparation: Workers create proper depth and dimensions for stable installation

• • Base material installation: Crews place and compact granular materials to specified density

• • Leveling and positioning: Technicians use precision instruments to achieve proper alignment

• • Final inspection and testing: Quality control teams verify specifications and load capacity

• • Documentation and certification: Installers record measurements and compliance with standards

Professional installation ensures that condenser pads meet manufacturer requirements and local building codes. This attention to detail prevents problems during equipment operation and maintains warranty coverage.

Tip: Always request documentation of installation procedures and final measurements to verify compliance with equipment manufacturer specifications.

How to Level AC Condenser Pad

Achieving proper level installation is essential for optimal HVAC system performance and equipment longevity. Unlevel installations can disrupt refrigerant flow, increase component wear, and lead to premature system failure, making precise leveling techniques critical for reliable operation.

Professional leveling requires systematic approach and appropriate tools. Begin by establishing a stable work area and gathering precision leveling instruments including 4-foot levels, transit equipment, and measurement tools. Verify that base materials are properly compacted and ready to support the pad installation.

Step-by-Step Leveling Process:

1. Initial Assessment

   • - Survey installation area for existing grade and drainage patterns

   • - Verify utility clearances and local code compliance requirements

   • - Mark reference points using permanent markers or stakes

   • - Measure and record existing ground elevations

2. Base Preparation and Grading

   • - Excavate installation area to specified depth plus base material thickness

   • - Install and compact granular base material in 2-inch lifts

   • - Grade base surface with proper slope for drainage (minimum 1/8" per foot away from building)

   • - Verify compaction using appropriate testing methods

3. Pad Installation and Precision Leveling

   • - Position air conditioner condenser pad on prepared base surface

   • - Check initial level using precision bubble level in multiple directions

   • - Make fine adjustments by adding or removing base material beneath pad edges

   • - Verify level accuracy within 1/8 bubble or 1/16" per foot tolerance

4. Final Verification and Documentation

   • - Confirm level installation using transit or laser level for critical applications

   • - Check diagonal measurements to ensure square positioning relative to building

   • - Test stability by applying measured pressure to all corners and edges

   • - Document final elevations and installation measurements for warranty records

Professional Installation Tips:

• - Use transit or laser level equipment for installations requiring high precision

• - Allow 24-48 hours settling time before final equipment installation

• - Maintain level tolerance within manufacturer specifications (typically ±1/8")

• - Create permanent reference marks for future service and maintenance verification

Proper leveling techniques ensure that HVAC equipment operates efficiently while preventing costly repairs associated with refrigerant flow problems or component misalignment. Professional installation following these procedures provides reliable foundation support throughout the system's service life.

Condenser Pad Sizes

Selecting appropriate dimensions ensures adequate equipment support while maintaining proper clearances for maintenance access and airflow. Standard sizing accommodates most residential and commercial applications while providing flexibility for various installation requirements and equipment configurations.

Common hvac condenser pad dimensions serve different capacity ranges and installation needs. Residential applications typically use smaller sizes that provide adequate support without excessive material costs. Commercial installations often require larger dimensions to accommodate heavier equipment and increased load requirements.

Standard Size Applications:

• - 24" x 24" pads: Compact residential units, heat pumps up to 2.5 tons capacity, mini-split outdoor units

• - 30" x 30" pads: Standard residential systems 2.5-4 tons, most popular residential size (ac condenser pad 30x30)

• - 36" x 36" pads: Larger residential units 4-5 tons, small commercial systems (ac condenser pad 36x36)

• - 42" x 42" pads: Commercial installations, multi-zone systems, equipment requiring enhanced stability

Commercial and Custom Applications:

• - 48" x 48" and larger: Heavy commercial equipment, rooftop unit support bases

• - Rectangular configurations: Custom sizes for equipment with non-square footprints

• - Multi-pad installations: Multiple standard units joined for oversized equipment support

When determining proper size, consider these critical factors:

• - Equipment footprint dimensions plus minimum 3-6" clearance on all sides for stability

• - Manufacturer specifications for foundation support and warranty compliance

• - Local building code requirements for equipment clearances and setbacks

• - Soil conditions and load-bearing capacity of installation site

• - Future maintenance access requirements and service clearance needs

• - Environmental factors including wind loads and seismic considerations

The ac condenser pad 30x30 size represents the most common choice for typical residential central air conditioning systems, providing excellent stability for standard equipment while maintaining reasonable material and installation costs. The ac condenser pad 36x36 dimension accommodates larger capacity residential systems and light commercial applications where additional support area is beneficial.

Proper sizing ensures that equipment weight distributes evenly across the pad surface, preventing edge loading or point loads that could cause foundation failure or equipment misalignment over time.

Practical Applications

Residential Installations

Air conditioner condenser pads play a vital role in residential HVAC installations by providing stable foundation support for outdoor equipment. Professional installers position pads to support condensing units while maintaining proper clearances from building structures and property lines. The installation process ensures adequate drainage and prevents equipment damage from ground moisture or settling. Proper pad selection accommodates unit weight and dimensions while meeting local building code requirements.

Tip: Always verify that installations maintain minimum clearances specified by equipment manufacturers to ensure proper airflow and service access.

Commercial Applications

Commercial HVAC installations utilize larger condenser pads or multiple-pad configurations to support heavier equipment and increased load requirements. These applications often require custom dimensions or enhanced load-bearing capacity to accommodate rooftop units, package systems, and multi-zone equipment. Professional installations include additional features such as vibration isolation and enhanced drainage systems.

• - Large commercial pads support equipment weighing several thousand pounds

• - Multi-pad installations distribute loads across larger foundation areas

• - Enhanced materials provide superior durability in high-use applications

This approach improves system reliability and reduces maintenance requirements in demanding commercial environments. Professional installation ensures compliance with commercial building codes and equipment specifications.

Equipment Protection and Maintenance Access

Hvac condenser pads facilitate equipment protection while providing necessary access for routine maintenance and service procedures. The elevated installation protects units from ground-level hazards including flooding, debris accumulation, and pest infiltration. Proper pad sizing ensures technicians can access all equipment components safely during service calls.

Regular maintenance becomes more efficient with proper foundation support that maintains equipment alignment and accessibility. The stable platform prevents equipment movement during service procedures and provides safe working conditions for technicians.

Note: Proper pad installation and maintenance support efficient HVAC operation while protecting valuable equipment investments from environmental damage and operational stress.

Identification & Maintenance

Identifying Quality Installations

Quality condenser pad installations demonstrate several key characteristics that indicate professional workmanship and long-term reliability. Inspectors look for level installation within specified tolerances, proper drainage away from equipment, and adequate clearances on all sides. Quality installations feature stable positioning without rocking or movement when pressure is applied. The pad surface remains clean and free from cracks, chips, or other damage that could affect performance.

Tip: Always verify that installations include proper documentation showing compliance with manufacturer specifications and local building codes.

Regular assessment helps identify potential problems before they affect system performance. Professional inspections include checking foundation stability, drainage effectiveness, and equipment alignment. Early detection of settlement or damage allows for corrective action that prevents costly equipment problems.

Maintenance Requirements

Proper maintenance preserves condenser pad performance and extends installation life. Property owners should perform routine inspections to identify drainage problems, surface damage, or settling issues. Regular cleaning removes debris that could block drainage or create moisture retention problems.

Essential maintenance tasks include:

If inspectors find settling, cracking, or drainage problems, they should address these issues promptly to prevent equipment damage. Professional evaluation may be necessary for significant problems or when equipment performance is affected.

Performance Monitoring

Ongoing performance monitoring helps identify when maintenance or corrective action is needed. Property owners should watch for signs including unusual equipment noise, vibration, or performance problems that could indicate foundation issues. Changes in drainage patterns or water accumulation around the installation also warrant attention.

Note: Regular monitoring and preventive maintenance help ensure reliable HVAC operation while protecting equipment investments from foundation-related problems.

Replacement Guidelines

HVAC system owners must understand when condenser pad replacement becomes necessary to maintain equipment safety and performance reliability. Damaged or deteriorated pads can compromise system stability and lead to expensive equipment repairs or premature failure.

When to Replace Condenser Pads

Property owners should consider replacement when they observe any of the following conditions:

• • Structural damage: Cracks, chips, or breaks that affect load-bearing capacity or stability

• • Significant settling: Pad movement or sinking that affects equipment level or drainage

• • Surface deterioration: Extensive weathering, spalling, or material degradation

• • Drainage failure: Persistent water accumulation or blocked drainage channels

• • Size inadequacy: Original pad dimensions insufficient for replacement equipment

• • Code compliance: Existing installation fails to meet current building code requirements

Tip: Address foundation problems promptly to prevent equipment damage and maintain system efficiency. Delaying replacement can result in more expensive repairs later.

Replacement Process

Property owners should follow these steps for successful pad replacement:

• • System shutdown: Turn off power and refrigerant systems safely before beginning work

• • Equipment removal: Disconnect and relocate HVAC unit using proper lifting equipment

• • Site evaluation: Assess ground conditions and update installation to current standards

• • New pad installation: Follow proper preparation and leveling procedures for optimal results

• • Equipment reinstallation: Position unit on new pad and verify all connections

• • System testing: Check operation and performance after completion

• • Documentation: Record replacement details for warranty and maintenance records

Note: Professional installation ensures compliance with current codes and manufacturer specifications while protecting equipment warranties and system performance.

Replacement Timing

There is no predetermined schedule for pad replacement since service life depends on installation quality, environmental conditions, and maintenance practices. Most quality installations provide 15-25 years of reliable service with proper maintenance. However, property owners should prioritize safety and equipment protection over cost considerations.

Regular inspections and preventive maintenance help maximize pad service life while identifying replacement needs before problems affect HVAC system operation.

Conclusion

Air conditioner condenser pads serve as the critical foundation for reliable HVAC system operation, protecting expensive equipment while ensuring optimal performance throughout the system's service life. Understanding proper sizing, installation techniques, and maintenance requirements enables property owners to make informed decisions that protect their HVAC investments.

Professional installation following established standards provides stable equipment support while complying with manufacturer specifications and local building codes. Whether selecting standard dimensions like ac condenser pad 30x30 or ac condenser pad 36x36 configurations, proper installation techniques remain essential for long-term success and equipment protection.

For property owners seeking reliable condenser pad suppliers, JIAHAO provides high-quality solutions backed by industry expertise and commitment to customer satisfaction. Professional-grade materials and comprehensive technical support ensure your HVAC investment receives the foundation support it deserves for years of reliable operation.

FAQ

What is the main purpose of an air conditioner condenser pad?

An air conditioner condenser pad provides stable foundation support for outdoor HVAC equipment while protecting units from ground moisture, settling, and environmental damage. It maintains proper equipment alignment and facilitates efficient system operation.

How can someone identify a damaged condenser pad?

Inspectors look for visible cracks, settling, surface damage, or drainage problems. Signs include equipment that rocks or moves when pressure is applied, water accumulation around the installation, or changes in system noise or vibration levels.

Are all condenser pad sizes standardized?

Standard residential condenser pads come in common dimensions including 24"x24", 30"x30", 36"x36", and larger sizes. This standardization ensures consistent installation practices and equipment compatibility across different applications.

How often should condenser pads be inspected?

Property owners should inspect pads at least twice annually, typically during spring and fall maintenance periods. Regular monitoring helps identify problems early and prevents equipment damage from foundation issues.

Can HVAC equipment be used if the condenser pad is damaged?

Operating equipment on damaged or unstable pads risks expensive equipment damage and safety hazards. Any significant pad damage should be corrected before system operation to maintain equipment warranties and safe operation.

What materials provide the best durability for condenser pads?

High-quality composite materials and reinforced concrete offer excellent durability and weather resistance. Material selection depends on application requirements, load capacity needs, and environmental conditions.

Why do different applications require different pad sizes?

Equipment weight, dimensions, and installation requirements vary significantly between residential and commercial applications. Proper sizing ensures adequate support while maintaining necessary clearances for maintenance and operation.

Tip: Always verify that installations meet equipment manufacturer specifications and local building code requirements to ensure optimal performance and warranty coverage.
