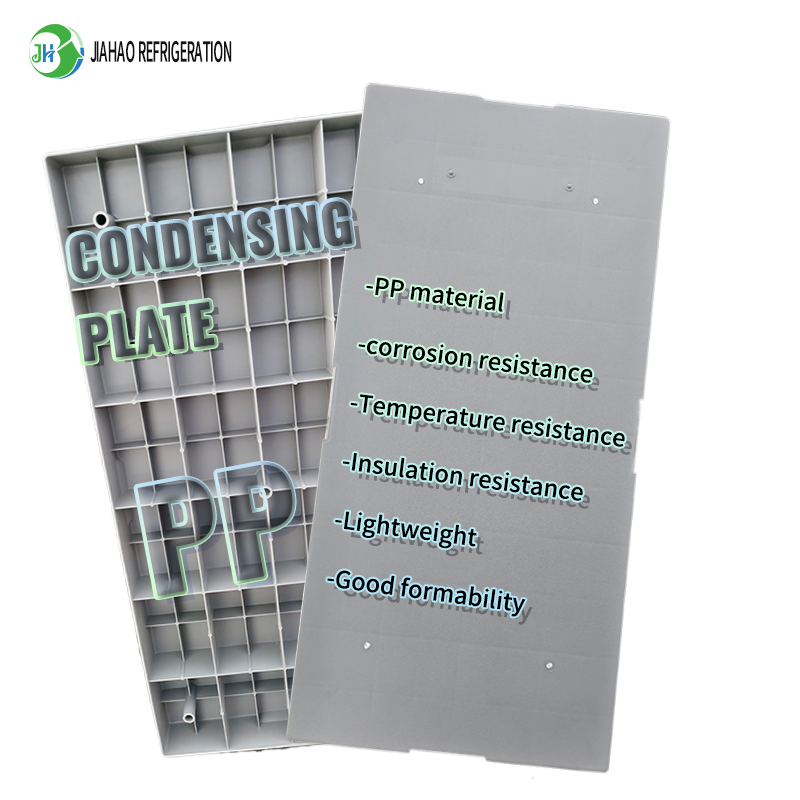

• This type is Jiahao Factory's Mounted Air Conditioner Pad. This product is made of PP, which is lightweight, making it easy to transport and install. It has excellent mechanical properties, offering resistance to impact and bending, as well as insulation and high-temperature resistance. This makes it a safer option for supporting and cooling the outdoor unit. Currently, we offer three sizes: 38*18*3, 32*32*3, 36*36*3, 24*24*3. This product is one of our best-sellers, but stock is limited.
■ Features of HVAC Condenser Pad
· Density:
-The density of PP material is generally between 0.89-0.91g/cm³, and the weight of PP condenser plate is relatively light, making it easy to handle and install.
· Temperature resistance:
-The melting point of PP condensing plate is 164-174℃, and it can generally be used at a temperature of 110-125℃. It does not deform even when it reaches 150℃ without external force.
· Corrosion resistance:
-For inorganic compounds, regardless of acid, alkali, or salt solutions, except for oxidation, they have almost no destructive effect until 100℃. Almost all solvents are insoluble at room temperature, and can be used in media such as alkanes, hydrocarbons, alcohols, phenols, aldehydes, ketones, etc.
· Insulation:
-PP is a good insulation material with high electrical insulation performance, which can prevent safety accidents such as leakage.
· Formability:
-Easy to process and shape, capable of producing condensation plates of various shapes and sizes through various molding processes such as injection molding and extrusion, meeting the needs of different equipment and application scenarios.
· Surface characteristics:
-The surface is smooth and not prone to scaling, reducing the problems of increased thermal resistance and decreased condensation efficiency caused by scaling, and lowering the frequency of cleaning and maintenance.
· Environmental friendliness:
-PP is a recyclable material that meets environmental requirements and does not release harmful substances during use, making it environmentally friendly.
■ Specification of HVAC Condenser Pad
SIZE | WEIGHT |
18"×38"×3" | 3.6KG |
32"×32"×3" | 6.3KG |
36"×36"×3" | 7.8KG |
24"×24"×3" | 3KG |
■ Non-Standard HVAC Condenser Pad Customization
The low density of PP material makes the PP condensing plate lighter in weight, making it easier to transport, install, and maintain, while also reducing the overall weight of the equipment.
The load-bearing plate is stable and does not shake. The thickened material is not loose.
PP is a good insulation material with high electrical insulation performance, which is very important in some situations where electrical insulation is required to prevent safety accidents such as leakage.
■ Why Choose JIAHAO HVAC Condenser Pad
■ Qualification Certification
