Every outdoor air conditioning unit needs a solid foundation — and for decades, that foundation came in one form: a poured concrete slab. Today, plastic AC condenser pads (particularly those made from polypropylene, or PP) have become the go-to solution for a growing number of installers and homeowners around the world. But which material is truly better?

This guide breaks down the key differences between concrete and plastic AC condenser pads across every dimension that matters — durability, weight, cost, installation, vibration control, and long-term performance — so that buyers can make a confident, informed choice for their specific situation. According to HVAC industry guidance, the right pad material depends on the unit size, climate, and installation requirements rather than a single universal answer.

What Is an Air Conditioner Condenser Pad — and Why Does It Matter?

An air conditioner condenser pad is a flat platform placed beneath the outdoor unit of a split or central air conditioning system. Its primary jobs are straightforward: keep the unit level, elevate it above the ground to prevent moisture contact, and absorb some of the operational vibration that the compressor generates during normal use.

Without a proper pad, outdoor AC units can tilt over time as soil settles, leading to compressor oil migration (which shortens compressor life), increased noise, and faster wear on refrigerant lines. According to HVAC professional sources, a correctly installed condenser pad can extend an AC unit's working life considerably by preventing these common failure modes. Most modern building codes — including the 2011 International Mechanical Code (IMC) — require that outdoor HVAC appliances sit at least 3 inches above grade.

Pads are typically made from one of three materials: poured concrete, pre-cast concrete, or plastic AC condenser pads made from recycled composites or virgin polypropylene (PP). Each comes with distinct trade-offs.

Concrete Condenser Pads: Strengths and Limitations

Poured or pre-cast concrete pads have been used in HVAC installations for decades. Their main appeal is raw structural strength — a thick concrete slab can support even the heaviest commercial condensing equipment without deformation. For very large central AC systems (above 5 tons) or rooftop commercial units, concrete remains a reasonable choice.

However, concrete carries several practical disadvantages that have led most residential installers to move away from it. Concrete is porous, meaning it absorbs rainwater and ground moisture. In regions with cold winters, this moisture can freeze inside the concrete, expanding and causing surface cracking over time. A cracked pad can tilt unevenly, transferring stress to the refrigerant lines and the unit's base frame. Additionally, a heavy concrete slab is essentially permanent once installed — if the next replacement AC unit has a different footprint, the old pad is usually demolished and discarded, which is both wasteful and labor-intensive. As experienced HVAC contractors note, leveling an old 6-inch concrete pad is often more trouble than it is worth.

Plastic AC Condenser Pads: Why PP Has Become the Industry Standard

Modern PP AC condenser pads are engineered from polypropylene — a thermoplastic widely trusted across automotive, plumbing, and construction industries. According to material science sources, polypropylene has a density of approximately 0.90 g/cm³, making it one of the lightest structural plastics available. This low density translates directly into lighter pads that one person can carry, position, and level without heavy equipment.

PP's material properties make it particularly well-suited to outdoor HVAC applications. Its working temperature range (110–125°C) far exceeds anything an outdoor condenser pad would encounter in normal service. It is highly resistant to water absorption, meaning freeze-thaw cycles that crack concrete have essentially no effect on a PP pad. PP also resists a broad range of chemicals — acids, alkalis, and common solvents — which matters in industrial or coastal environments where salt air or chemical exposure can accelerate degradation in other materials.

A less-discussed but important advantage is electrical insulation. PP is a reliable electrical insulator, preventing stray current from the AC unit from passing into wet ground — a safety consideration that matters in regions where grounding standards vary.

Head-to-Head Comparison: Concrete vs. Plastic AC Condenser Pad

Understanding PP Material: What Makes It Reliable Outdoors

Polypropylene's suitability for outdoor HVAC applications comes down to a combination of properties that work together in real-world conditions. Its melting point (164–174°C) is far higher than any temperature a condenser pad will encounter in service. Even in desert climates where sun-exposed surfaces can reach 70–80°C on a summer afternoon, a PP pad remains structurally sound and dimensionally stable. At the cold extreme, PP does not become brittle at the temperatures experienced in most inhabited regions, and it absorbs essentially no water, so frost damage is not a concern.

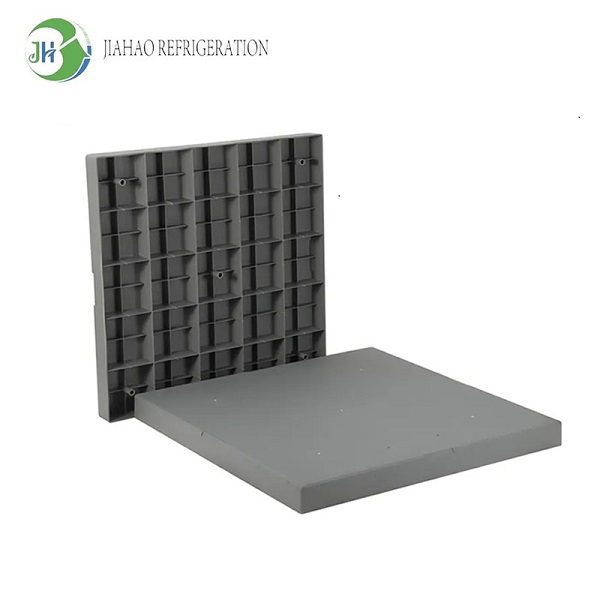

The ribbed underside structure found on well-designed PP AC condenser pads serves a dual purpose: it distributes the unit's weight evenly across the ground contact points (preventing localized sinking) while also creating air gaps that promote drainage and deter pest nesting. The smooth upper surface resists scale buildup from condensate water, which is a minor but practical advantage over textured materials.

One valid concern with raw polypropylene is UV sensitivity. Prolonged sun exposure can cause untreated PP to become brittle over several years. Quality plastic AC condenser pads address this by incorporating UV stabilizer additives during the manufacturing process. When sourcing a pad, buyers should confirm that UV stabilization is included — this is standard practice among reputable manufacturers but worth verifying.

Which Condenser Pad Is Right for Each Situation?

Rather than a single universal recommendation, the right choice between a concrete and a plastic AC condenser pad depends on the specific installation context. The following scenarios outline where each material makes the most sense.

Installing a Plastic AC Condenser Pad: What the Process Looks Like

One of the most practical advantages of a plastic AC condenser pad is installation simplicity. According to HVAC installation guides, a plastic pad can be ready for unit placement within one to two hours of starting the site preparation, compared to up to five days for poured concrete to cure. The general installation process for a PP pad follows these steps:

1. Site selection: Choose a location that is level, away from water collection areas, and close enough to the home's refrigerant line set and electrical connections to allow a clean installation.

2. Ground preparation: Excavate the top layer of soil to a shallow depth and lay a 2–3 inch bed of compacted gravel. This promotes drainage and prevents the pad from sinking into soft ground over time.

3. Pad placement and leveling: Set the air conditioner condenser pad on the gravel base and check level in two directions with a spirit level. Adjust the gravel beneath low corners until the pad sits perfectly flat. This step is far simpler than leveling a concrete slab.

4. Unit installation: Place the outdoor condensing unit on the pad, make refrigerant line and electrical connections according to the manufacturer's instructions, and verify that the unit is level before startup.

5. Ongoing maintenance: Periodically clear vegetation from around the pad to maintain airflow and prevent ground heaving. Inspect the pad's level once a year and re-shim with gravel if needed.

Choosing the Right Size: Common PP Condenser Pad Dimensions

Size selection is one of the most important steps when purchasing an air conditioner condenser pad. The pad must be large enough to fully support the outdoor unit's base frame, with the unit sitting comfortably without significant overhang. Below are the most common standard sizes for PP AC condenser pads and their typical applications:

When the outdoor unit's footprint falls between standard sizes, it is always better to select the next size up. Manufacturers like JIAHAO also offer custom-size PP AC condenser pads for non-standard applications, which is particularly useful for commercial projects or replacement installations where the original pad size was unusual.

Environmental and Safety Considerations

Sustainability has become an increasingly important factor in HVAC procurement decisions. On this dimension, plastic AC condenser pads made from polypropylene hold a meaningful advantage over concrete. PP is classified as a recyclable thermoplastic (resin identification code #5), and at the end of its service life, a PP pad can be submitted to appropriate plastics recycling streams rather than going to landfill. Concrete, by contrast, contributes to construction waste and has a higher embodied carbon footprint due to the cement production process.

From a safety perspective, the electrical insulation properties of PP matter in practice. A PP pad prevents any stray electrical current — for instance from a damaged unit or during a ground fault — from passing through wet soil to a nearby person. This is a passive safety benefit that concrete does not provide.

PP does not release harmful substances during its service life. Unlike some older materials used in HVAC pads (such as rubber compounds containing processing oils), polypropylene is chemically inert under normal outdoor conditions.

Summary: The Verdict on Concrete vs. Plastic AC Condenser Pads

For the vast majority of residential and light-commercial HVAC installations today, a quality PP AC condenser pad is the better overall choice. It installs faster, weighs far less, resists moisture and corrosion without any treatment, handles freeze-thaw cycles without cracking, provides electrical insulation, and can be reused when the outdoor unit is eventually replaced. The only scenario where concrete clearly wins is when the unit is exceptionally heavy and exceeds the load rating of available plastic pad sizes.

This shift from concrete to plastic is not a compromise — it reflects genuine improvements in material engineering. Modern plastic AC condenser pads with UV stabilization and reinforced ribbed profiles deliver comparable or superior real-world performance compared to the concrete slabs that dominated the industry a generation ago.

When sourcing a plastic AC condenser pad, buyers should prioritize manufacturers who use virgin or high-quality recycled PP, include UV stabilizers, and offer clear load-bearing specifications. Custom sizing capability, quality certifications, and a meaningful product warranty are additional indicators of a reliable supply partner.

For businesses and contractors seeking a dependable air conditioner condenser pad manufacturer, JIAHAO offers a full range of PP condenser pads in standard and custom sizes, backed by factory certifications, a 3-year product guarantee, and flexible OEM services.

Frequently Asked Questions
