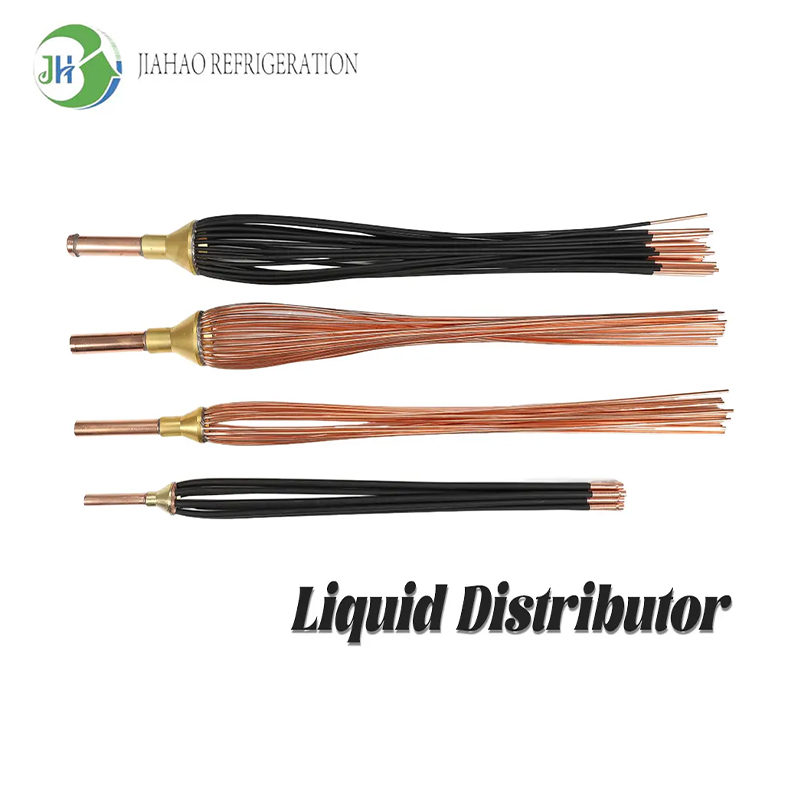

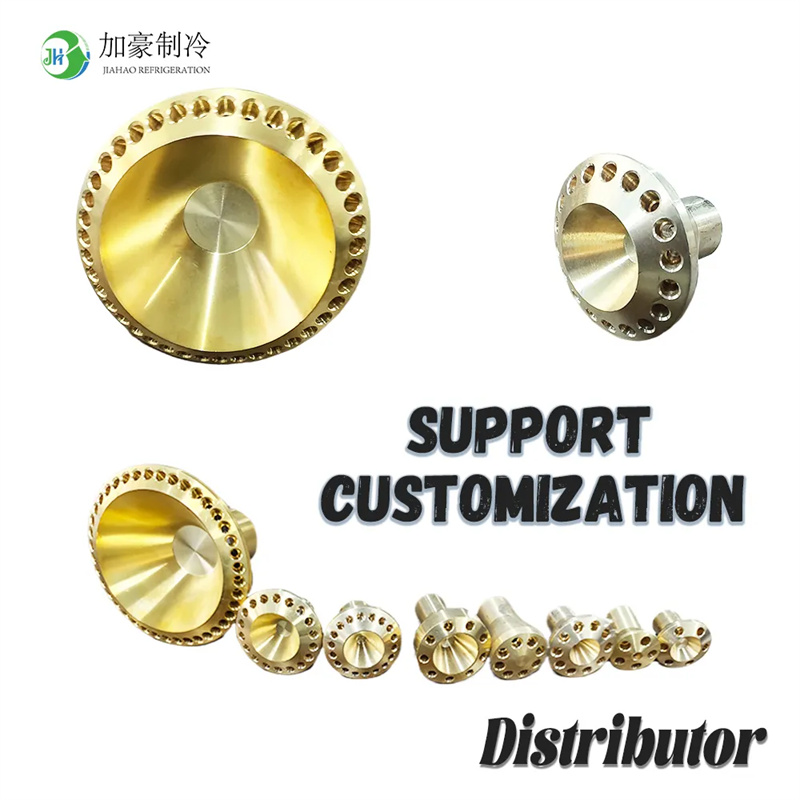

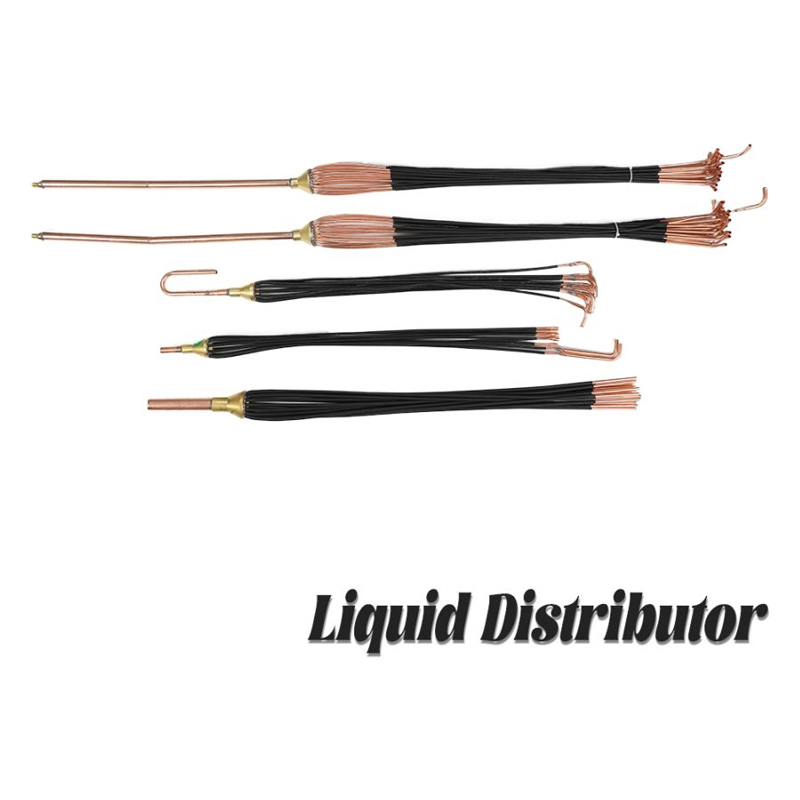

JIAHAO Liquid Refrigerant Distributor is a critical component designed to precisely and evenly split refrigerant flow to multiple outlets in your AC system. By ensuring uniform distribution, our AC refrigerant distributor maximizes heat exchanger efficiency, protects your compressor from liquid slugging, and enhances overall system reliability and lifespan.
■ Features

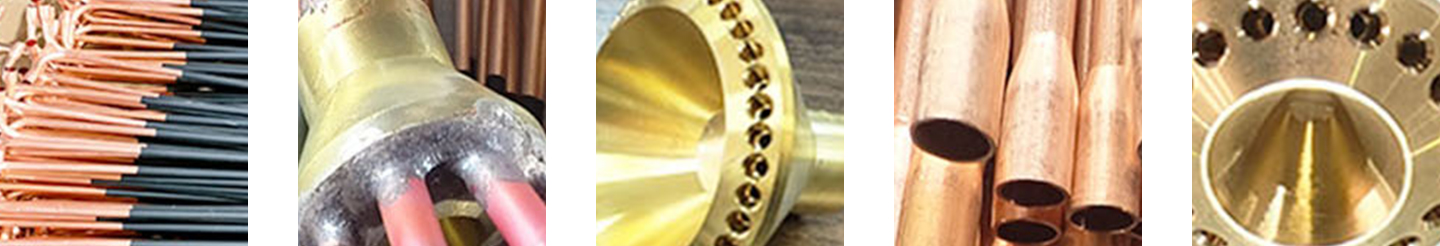

High-performing Brass Build: Crafted with high-quality brass using avanced forging process, which has no porosity and cracks, guaranteeing long-term durability and leak-free operation.

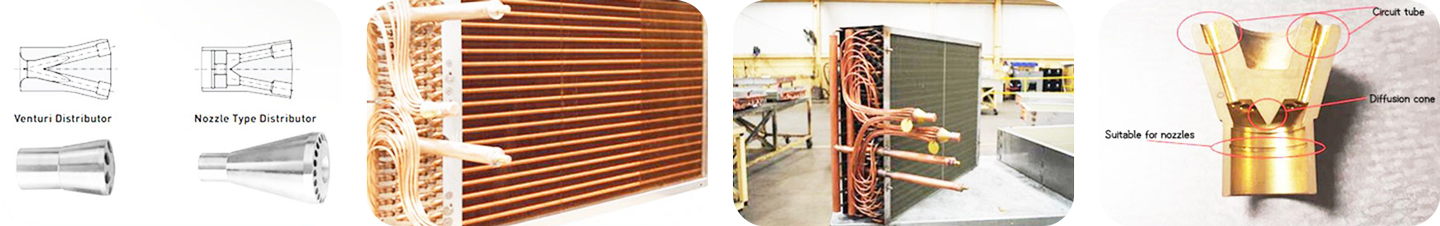

Precision Flow Design: Its funnel shaped intake and refined internal structure planned to precisely direct the flow for balanced cooling while reducing internal noise.
Designed for AC Systems: This air conditioner refrigerant distributor is specifically designed for use with ac refrigerants, making it the ideal AC refrigerant distributor for both commercial and residential applications.
■ Specification
Entering the pipe (mm) | Exit pipe (mm) | Hole |
9.52 | 5 | 3 |
12 | 6 | 2 |
16 | 6 | 4 |
16 | 6 | 5 |
16 | 6 | 7 |
16 | 6 | 8 |
16 | 6 | 9 |
16 | 6 | 10 |
19 | 6 | 5 |
19 | 6 | 6 |
19 | 6 | 7 |
19 | 6 | 9 |
22 | 6 | 10 |
22 | 6 | 11 |
22 | 6 | 12 |
22 | 6 | 13 |
22 | 6 | 14 |
22 | 6 | 15 |
22 | 6 | 16 |
22 | 6 | 18 |
Material characteristics:

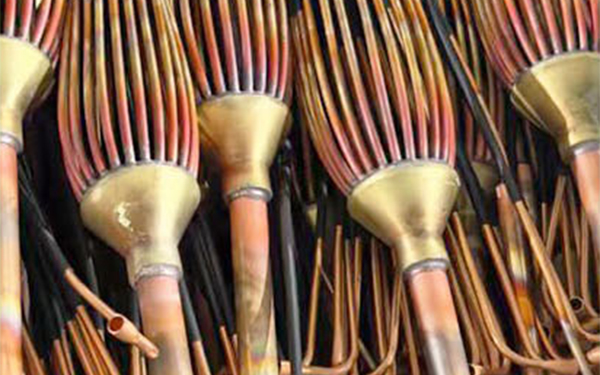

Brass separators are usually formed byforging HPB59-1 national standard brass. This material has the characteristics of nopores and no cracks, ensuring its qualityand durability
■ Non-Standard Customization
Uniform distribution eliminates "dry zones" in the evaporator, fully utilizing the heat exchange area to significantly lower your energy consumption.
By preventing liquid refrigerant from returning to the compressor, our liquid refrigerant distributor acts as a protective shield, avoiding costly compressor failures and system issues like frosting.
Its intelligent design adapts to varying loads, reducing installation complexity and long-term maintenance demands.
