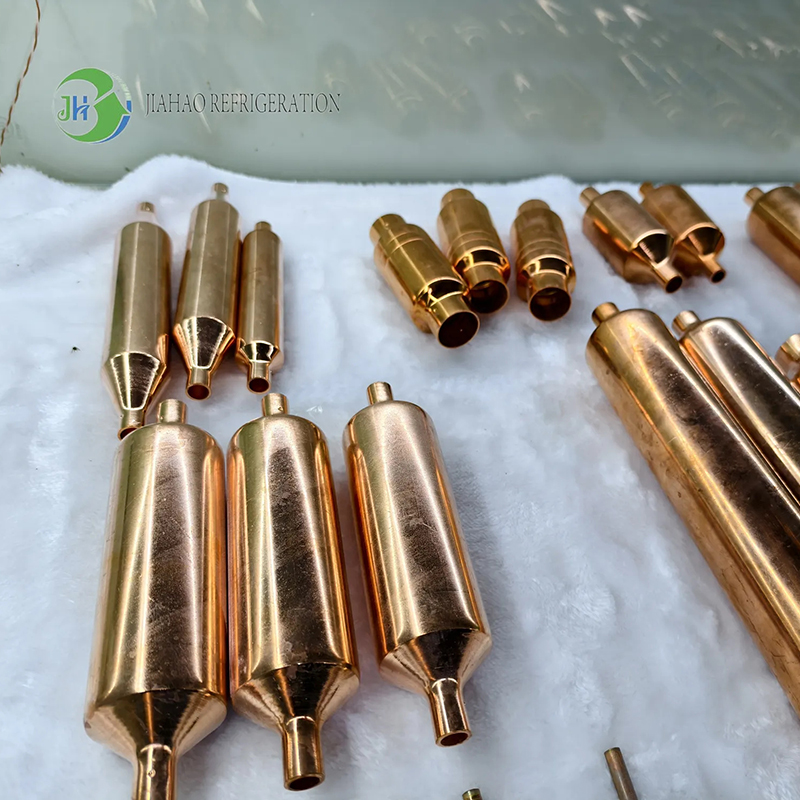

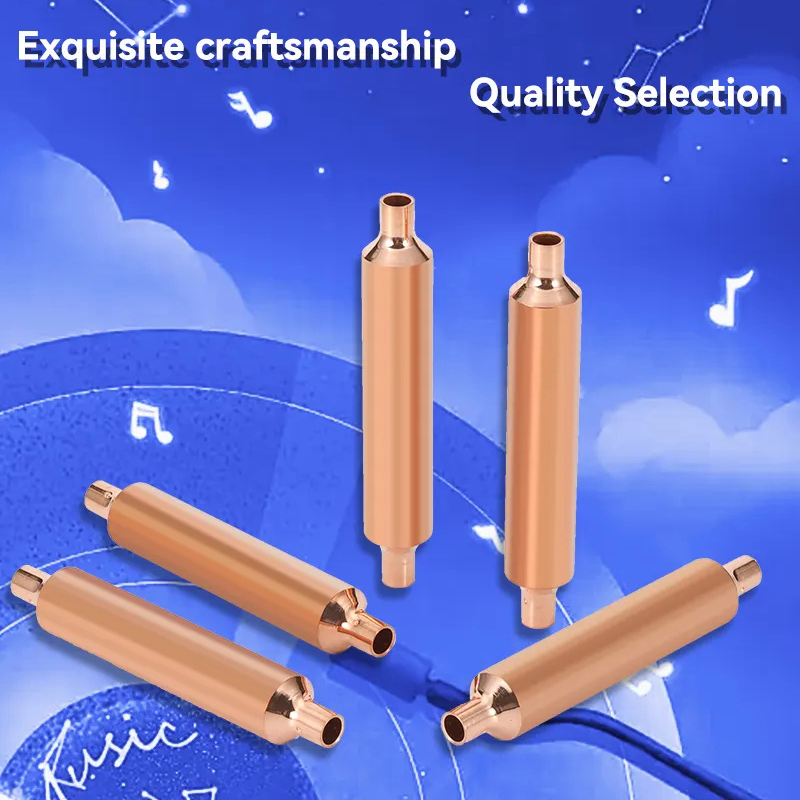

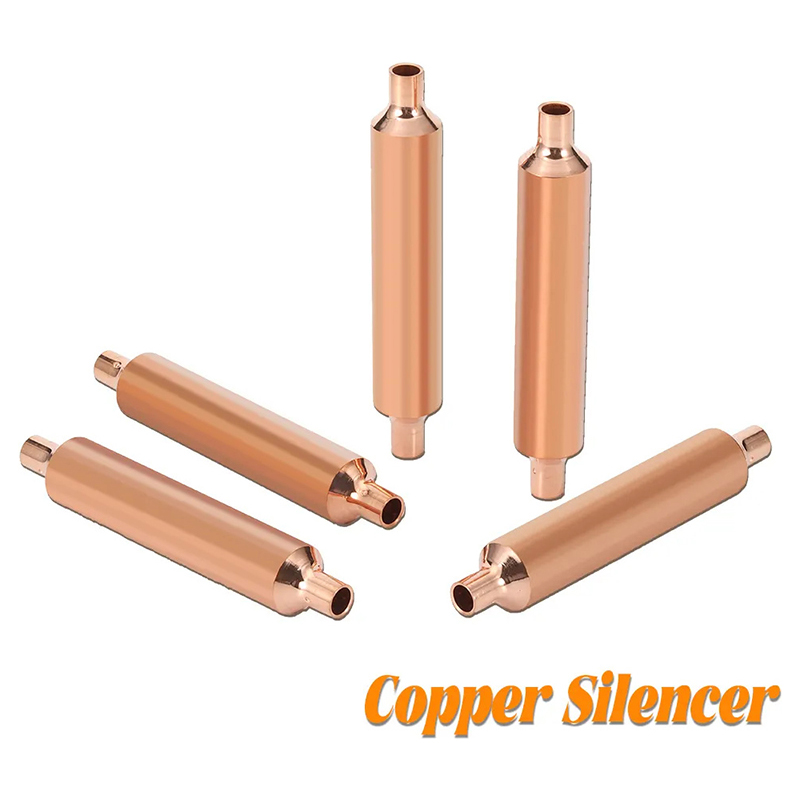

• Copper silencers, through their special design and material selection, can effectively reduce noise inside pipelines, improve environmental comfort and quietness
• Large quantities of spot goods available for customized processing based on drawings and samples

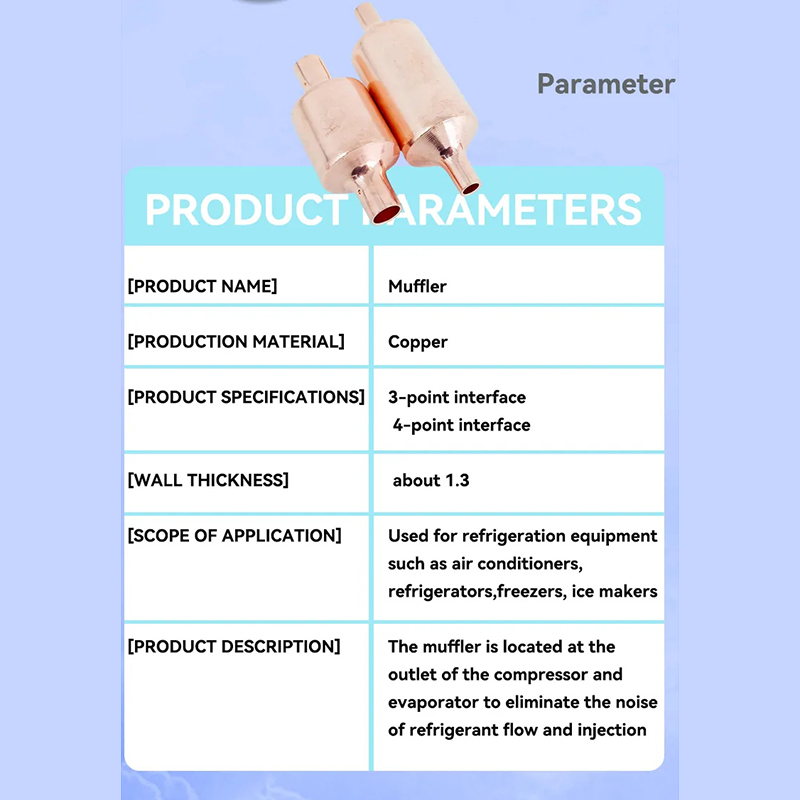

■ Specification
Mmber | Model | Lnterface inmmer diameter (mm) | Interface inmer diameter (mm) | Valve body diameter (mm) | Socket depth (mm) | Valve body length (mn) | Interbody wall thickness (mm) | Adaptation reference |
1 | JHCS-19.035-1-80-XYQ-8.1-8 | φ8.1 | φ8.1 | φ | 10 | 80 | 1 | |
2 | JHCS-19.05-1-80-XYQ-6.35-8.1 | φ6.35 | φ8.1 | φ | 10 | 80 | 1 | |
3 | JHCS-25.4-1-118-XYQ-9.7-9.7 | φ9.7 | φ9.7 | φ | 10 | 118 | 1 | |
4 | JHCS-25.4-1-130-XYQ-12.9-12.9 | φ12.9 | φ12.9 | φ | 10 | 130 | 1 | |
5 | JHCS-32-1-152-XYQ-9.7-12.9 | φ9.7 | φ12.9 | φ32 | 10 | 152 | 1 | |
6 | JHCS-40-1-178-XYQ-9.7-9.7 | φ9.7 | φ9.7 | φ40 | 10 | 178 | 1 | 5-7HP Single system |
7 | JHCS-40-1-178-XYQ-9.7-12.9 | 99.7 | φ12.9 | φ40 | 10 | 178 | 1 | 5-7HP Single system |
8 | JHCS-40-1-178-XYQ-12.9-12.9 | φ12.9 | φ12.9 | φ40 | 10 | 178 | 1 | 5-7HP Single system |
