Material: Premium 1100/3003 aluminum alloy tube coil
Tube Diameter: 1/8" to 5/8" (customizable size available)
Wall Thickness: 0.025" - 0.035" (ASTM B-483 standard)
Applications: HVAC systems, refrigeration units, heat exchangers
Coil Length: 50ft standard / Custom length up to 300ft
Certifications: ASTM B-483, RoHS compliant, ISO 9001

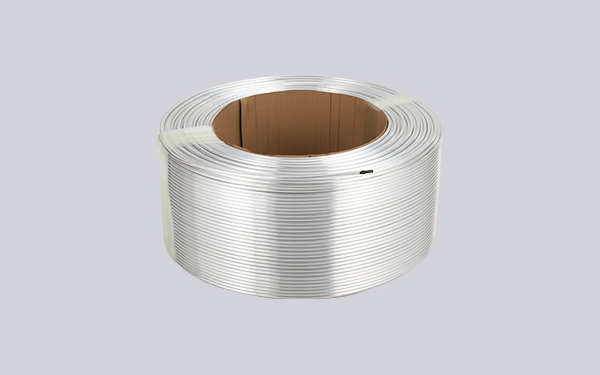

JIAHAO aluminum tube coil offers an excellent alternative to traditional copper tubing in HVAC and refrigeration applications. Manufactured from high-grade aluminum alloy, this tube coil delivers reliable thermal performance while significantly reducing material costs. The lightweight design makes installation faster and easier, while the aluminum tube coil's natural corrosion resistance ensures long-term durability in various environmental conditions.
· High quality insulation pipe:
- Several types: PE / ХPE / Titan / Rubber, two layers / single layer, etc
- Thickness 8mm-20mm.
- Anti-UV, Low water absorption, Low thermal conductivity
- Surface can be printed with words.
- Standards comply with EN13501, M1. ASTM E84. AS1530. RoHS. etc
· All sizes and thicknes of high quality copper tubes, as your requirements. Standards comply with EN12735, IS H3300, ASTM B280, AS1571. RoHs, etc.
· Type: single or pair types.
· With fared nuts
· Length: 1~50 meters.
· Suitable for any gas: R22, R407C, R410A, R404A, R507C, etc
· Light weight, good thermal conductivity
· Easy and quick installation, saving time and money, easy transport
· Seamlessness prevents from moisture entry or dripping.
· Can be with accessories: Nut, Drain pipe Tape, PVC wall. fix tape, jointinsualion pipe PC walhole sleve and cap, Electrical tape, Seal plasteretc
Bending Aluminum Tube Coil (ASTMB-483) | ||||
PART NO. | Tube O.D (IN.) | Wall Thickness (IN.) | Working Pressure (P.S.I.)* | Coil Length (FT) |
-2-50 | 1/8 | .025 | 1333 | 50 |
-3-50 | 3/16 | .028 | 953 | 50 |
-4-50 | 1/4 | .032 | 799 | 50 |
-5-50 | 5/16 | .035 | 690 | 50 |
-6-50 | 3/8 | .035 | 565 | 50 |
-7-50 | 7/16 | .035 | 479 | 50 |
-8-50 | 1/2 | .035 | 415 | 50 |
-10-50 | 5/8 | .035 | 328 | 50 |
Although aluminum has a lower thermal conductivity than copper, it still has good thermal conductivity and can effectively transfer heat to meet the cooling and heating needs of air conditioning systems. By designing the structure and size of aluminum coils reasonably, its thermal conductivity efficiency can be further improved.
Aluminum easily reacts with oxygen in the air, forming a dense layer of aluminum oxide film on the surface. This oxide film can prevent further oxidation of the aluminum inside, making it have good corrosion resistance and able to resist the erosion of moisture, acid and alkali substances in the air to a certain extent.
Luminum has good plasticity and ductility, making it easy to undergo bending, stretching, extrusion and other processing techniques. It can be processed into various shapes and sizes of coils according to different air conditioning design requirements, meeting the installation and use needs of different air conditioning systems.
