An air conditioner outdoor unit bracket supports the AC unit outside a building, providing a secure base for installation. Proper mounting keeps the unit stable and ensures good airflow. When installers use incorrect brackets or tilt the unit, water can pool and cause rust, corrosion, or electrical damage. A tilted unit may also stress refrigerant lines, leading to leaks. Choosing the right bracket means considering the unit’s weight, local climate, and where the installation will take place.

Key Takeaways

• - Choose the right bracket type based on your air conditioner's weight and installation location to ensure stability and safety.

• - Wall-mounted brackets are ideal for limited ground space, while floor-mounted options suit areas where wall mounting is not possible.

• - Anti-vibration brackets help reduce noise and make maintenance easier by keeping the unit elevated and accessible.

• - Adjustable brackets offer flexibility for different unit sizes and can simplify future upgrades or replacements.

• - Always verify the bracket's load capacity before installation to prevent accidents and ensure proper support.

• - Regular inspections every six months can catch issues like rust or loose bolts early, extending the lifespan of the bracket.

• - Use corrosion-resistant materials, especially in humid or coastal areas, to protect the bracket from weather damage.

• - Follow local building codes for installation to ensure safety and compliance, avoiding potential fines or removal of the unit.

Air Conditioner Outdoor Unit Bracket Types

Wall-Mounted Brackets

Features

Wall-mounted brackets hold the air conditioner outdoor unit securely against a building’s exterior wall. Manufacturers often use 16-gauge powder-coated steel to resist rust and weather damage. These brackets can support units weighing up to 500 pounds. Some designs include universal mounting holes, making them compatible with different brands and models. Adjustable arms allow installers to fit various unit sizes. Many wall-mounted brackets feature anti-vibration pads to reduce noise and movement.

Applications

Wall-mounted brackets work well for homes and buildings with limited ground space. Installers often use them for split ac outdoor unit bracket installations. These brackets keep the unit elevated, which helps prevent flooding and allows for better airflow. Wall-mounted options suit areas with uneven ground or where garden debris may block the unit. They also help meet local building codes that require units to stay off the ground.

Floor-Mounted Brackets

Features

Floor-mounted brackets, sometimes called Air Conditioner Floor Rack, provide a stable base for outdoor units on patios, rooftops, or concrete pads. Manufacturers design these brackets to support heavy-duty units. Many models use galvanized steel or aluminum for corrosion resistance. Adjustable feet help level the unit on uneven surfaces. Some floor racks include vibration-dampening pads to minimize noise.

• - Heavy-duty construction supports large units.

• - Adjustable feet allow for installation on sloped or rough surfaces.

• - Galvanized or aluminum materials resist rust and weather damage.

• - Vibration pads reduce operational noise.

Applications

Floor-mounted brackets suit installations where wall mounting is not possible. Technicians use them for ground-level units or rooftop setups. These brackets work well in commercial settings with large air conditioning systems. Floor racks also help in areas with weak walls or where building codes restrict wall-mounted options.

Anti-Vibration Brackets

Benefits

Anti-vibration brackets reduce noise and movement from the air conditioner outdoor unit. These brackets keep the unit off the ground, making cleaning and maintenance easier. Elevated placement helps spot leaks quickly and prevents leaves or dirt from blocking airflow. Anti-vibration designs also protect garden areas and reduce the chance of rainwater entering the unit during storms.

Use Cases

Anti-vibration brackets work best in homes where noise reduction is important. Installers use them for bedrooms or living rooms near the outdoor unit. These brackets suit buildings with strong walls that can support the weight. They also help in areas with frequent rain or garden debris. Anti-vibration options are popular for split ac outdoor unit bracket installations in residential settings.

Tip: When choosing an air conditioner outdoor unit bracket, consider adjustable, universal, and heavy-duty options. Specialized brackets, such as decorative or vibration-dampening types, offer extra benefits for unique installation needs.

Adjustable Brackets

Flexibility

Adjustable brackets offer a versatile solution for mounting air conditioner outdoor units. These brackets feature sliding arms or modular components that allow installers to change the width and depth to fit different unit sizes. This flexibility helps technicians adapt to various installation scenarios, such as tight spaces or uneven surfaces. Many adjustable brackets include level indicators, which help ensure the unit sits flat and drains properly. Some models use tool-free adjustment mechanisms, making installation faster and reducing the risk of errors.

Installers often choose adjustable brackets for projects where the exact dimensions of the air conditioner outdoor unit are not known in advance. These brackets can support a wide range of weights, from compact residential units to larger commercial systems. Heavy-duty adjustable designs use galvanized steel or powder-coated aluminum to resist rust and weather damage. Some brackets include vibration-dampening grommets, which help reduce noise and protect the unit from movement during operation.

Tip: Adjustable brackets simplify upgrades and replacements. If a homeowner changes to a new air conditioner model, the bracket can be resized without needing a full replacement.

Compatibility

Compatibility stands out as a major advantage of adjustable brackets. These brackets fit many brands and models, making them a popular choice for both residential and commercial installations. Universal mounting holes and sliding arms allow the bracket to match the bolt pattern of most air conditioner outdoor unit bracket designs. This feature reduces the need for custom fabrication and speeds up the installation process.

Recent market trends show that modular bracket designs with adjustable positioning have reached 30% market penetration over the past two years. This growth reflects the demand for solutions that work with a variety of unit sizes and installation environments. Adjustable brackets also help installers comply with local building codes, which may require specific mounting heights or clearances. By choosing an adjustable bracket, technicians can ensure proper airflow, drainage, and stability for the outdoor unit.

Adjustable brackets provide a reliable and adaptable solution for mounting air conditioner outdoor units. Their flexibility and compatibility help installers meet the needs of different projects while maintaining safety and performance.

Choosing a Bracket

Assessing Unit Size & Weight

Selecting the right air conditioner outdoor unit bracket starts with understanding the size and weight of the AC unit. Installers must check the manufacturer's specifications for both dimensions and weight. Most standard brackets support up to 330 lbs, but larger commercial units may require heavy-duty options. The bracket must match the unit’s footprint and provide enough strength to hold the load safely.

When evaluating bracket options, consider these factors:

1. - Material Durability: The bracket should withstand environmental stress, including corrosion and wind.

2. - Design Flexibility: Adjustable brackets fit various AC sizes and installation scenarios.

3. - Ease of Installation: User-friendly designs reduce labor time and minimize errors.

4. - Cost-Effectiveness: Pricing should reflect the bracket’s quality and expected lifespan.

5. - Compliance & Certifications: Look for brackets that meet safety standards such as UL or ISO.

6. - Supply Chain Reliability: Reliable vendors ensure consistent delivery and availability.

7. - Innovation & R&D: Advanced designs and materials improve performance and longevity.

8. - Customer Support & Warranty: Good post-sale service and warranties protect your investment.

Tip: Always verify the bracket’s maximum weight capacity before installation. Overloading can lead to bracket failure and damage to the AC unit.

Material Selection

Choosing the right material for an air conditioner outdoor unit bracket affects its durability, corrosion resistance, and lifespan. The most common materials include steel, aluminum, and galvanized steel. Each material offers unique benefits and limitations.

Steel

Steel brackets provide excellent strength and stability. Manufacturers often apply powder coatings or galvanized finishes to enhance corrosion resistance. Steel supports heavy units and works well in areas with high wind or heavy rainfall. However, steel brackets may require regular inspection for rust, especially in coastal regions.

Aluminum

Aluminum brackets are lightweight and naturally resist corrosion. The material forms a protective oxide layer, making it ideal for humid or rainy climates. Aluminum works best for smaller or medium-sized units due to its lower load-bearing capacity. Installers prefer aluminum for easy handling and quick installation.

Galvanized

Galvanized steel brackets feature a zinc coating that prevents rust and extends lifespan. These brackets offer a balance between strength and affordability. Galvanized options suit outdoor installations in high-wind or high-moisture areas. Over time, the finish may degrade, so regular inspection is important.

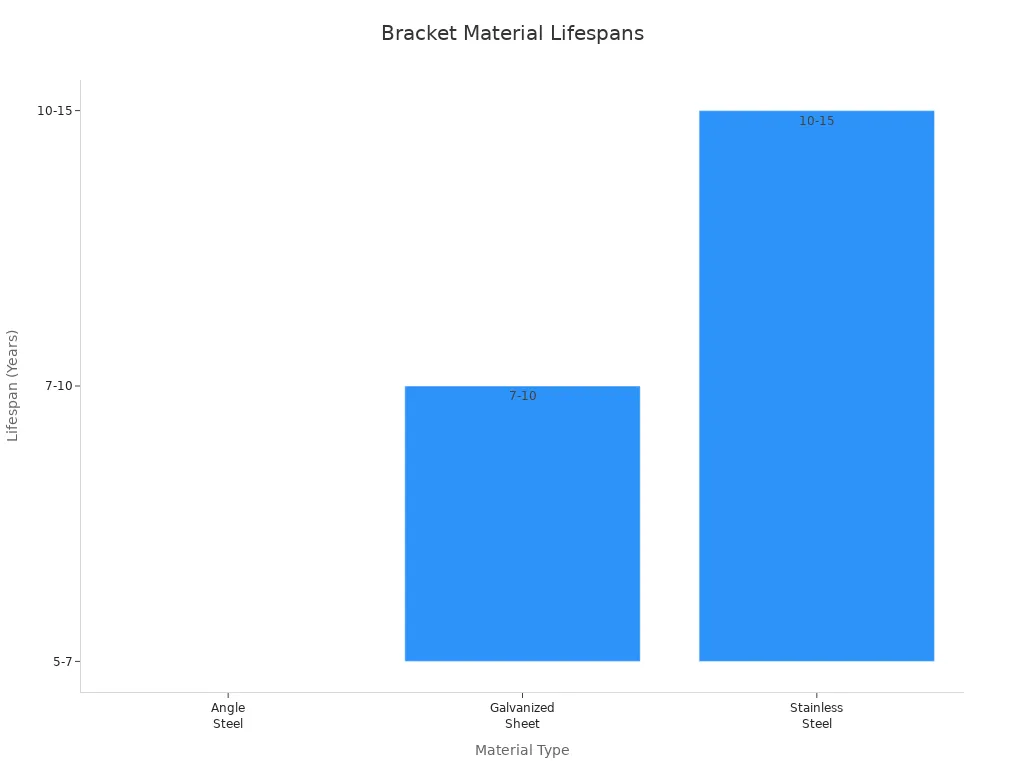

The following table compares the lifespans of common bracket materials:

Climate Considerations

Corrosion Resistance

Climate plays a major role in bracket selection. High humidity, salty air, and frequent rain can accelerate corrosion. Brackets installed in coastal or high-humidity regions need extra protection. Weatherized coatings, such as the W-Finish, create a moisture-repellent barrier and protect against salt corrosion. Stainless steel and galvanized steel offer strong resistance to rust, making them suitable for harsh environments.

• - The W-Finish weatherized coating protects brackets in humid and coastal areas.

• - Zinc coatings on galvanized steel prevent rust and extend bracket life.

• - Stainless steel resists corrosion and maintains structural integrity.

Weatherproofing

Weatherproofing ensures the bracket remains functional despite temperature extremes and moisture. Extreme heat can reduce AC efficiency and strain components. High humidity forces the unit to work harder, increasing wear on motors and coils. Brackets with weatherproof coatings and rust-resistant materials help maintain performance and safety.

• - Extreme heat causes air conditioning systems to run continuously, straining compressor components.

• - High humidity increases wear on blower motors and evaporator coils.

• - Excessive moisture promotes mold and mildew, obstructing airflow and reducing efficiency.

Installers should select brackets designed for the local climate. Proper material and weatherproofing choices extend the life of both the bracket and the air conditioner outdoor unit bracket.

Compatibility

Installers must check compatibility before selecting an air conditioner outdoor unit bracket. Compatibility means the bracket fits the size, weight, and mounting pattern of the AC unit. Manufacturers design universal brackets to work with many brands and models. Adjustable brackets offer sliding arms and modular parts. These features help installers match the bracket to the bolt holes and base dimensions of the unit.

Technicians often use a checklist to confirm bracket compatibility:

• - Unit Dimensions: Measure the width, depth, and height of the outdoor unit.

• - Mounting Pattern: Check the location and spacing of bolt holes on the unit’s base.

• - Weight Support: Verify the bracket’s load rating matches or exceeds the unit’s weight.

• - Clearance Requirements: Ensure enough space for airflow and maintenance.

Tip: Universal and adjustable brackets simplify installation. These designs reduce the need for custom fabrication and speed up the process.

Installers should also consider future upgrades. Adjustable brackets allow easy resizing if the homeowner replaces the AC unit. This flexibility saves time and money. Compatibility helps prevent installation errors, reduces vibration, and ensures the unit operates safely.

Local Codes

Local building codes set rules for installing air conditioner outdoor unit brackets. These codes protect safety and property. Installers must follow regulations about mounting height, bracket material, and distance from walls or windows. Some cities require brackets to keep the unit off the ground to prevent flooding. Others specify corrosion-resistant materials for coastal areas.

Technicians should review local codes before starting installation. Failure to comply can lead to fines or forced removal of the unit. Building inspectors may check bracket type, mounting method, and structural support. Installers must use brackets that meet standards for load capacity and weather resistance.

Common local code requirements include:

1. - Minimum Mounting Height: Keeps units above flood level.

2. - Material Standards: Requires rust-resistant steel or aluminum.

3. - Clearance Distances: Ensures proper airflow and access for maintenance.

4. - Structural Support: Demands brackets anchor to solid surfaces.

Note: Always consult local building authorities before installing an air conditioner outdoor unit bracket. Proper compliance protects the unit and ensures long-term safety.

Installers who follow local codes help homeowners avoid legal issues. They also ensure the bracket supports the unit securely in all weather conditions. Compliance with regulations improves safety and extends the life of the AC system.

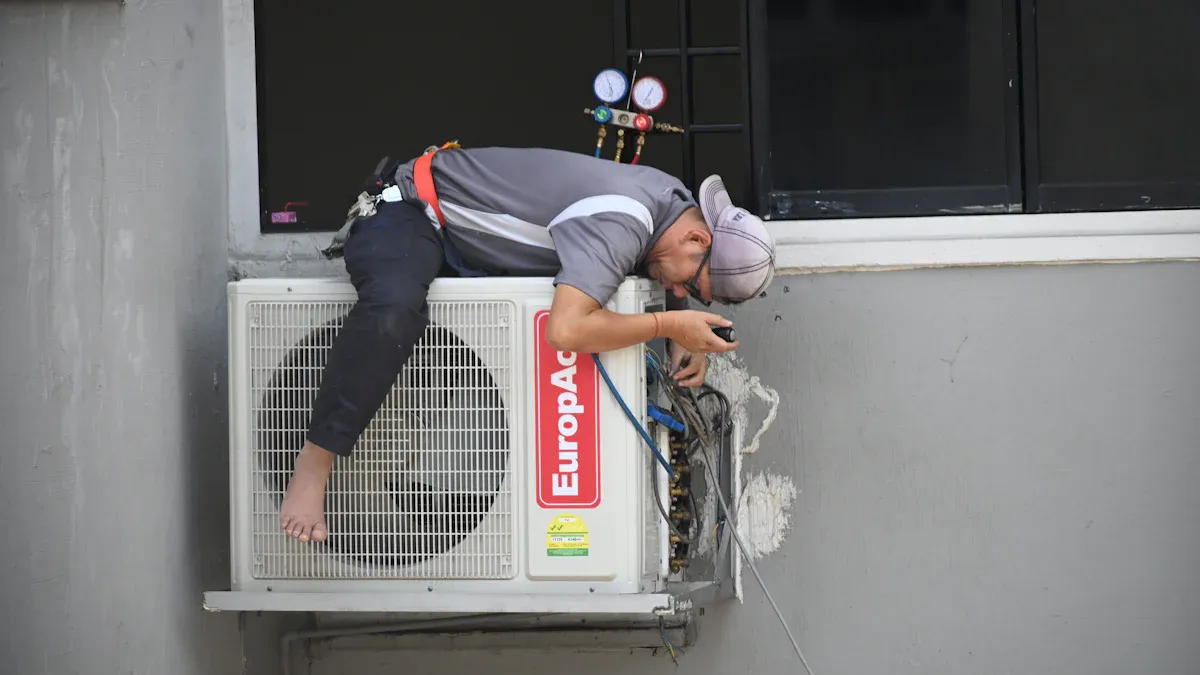

Air Conditioner Bracket Bracket Installation

Tools & Materials

Installers need the right tools and materials for a safe and stable air conditioner outdoor unit bracket installation. Common tools include a drill, level, wrench, screwdriver, and measuring tape. Many modern brackets feature tool-free assembly, which speeds up the process. Materials should include anti-vibration pads, rust-proof screws, and vibration grommets. These components help reduce noise and protect the unit from movement.

Tip: Always check the bracket kit for included level indicators and vibration grommets. These features help achieve precise installation and long-term stability.

Step-by-Step Process

Surface Prep

Installers begin by preparing the mounting surface. The area must be clean, dry, and free of debris. They check that the surface is level and stable. Uneven or weak surfaces can cause stress on refrigerant lines and lead to leaks. Proper surface prep prevents future problems and ensures the bracket supports the air conditioner outdoor unit bracket securely.

Securing Bracket

Next, technicians position the bracket according to manufacturer recommendations. They maintain clearance around the unit, usually 12–24 inches on all sides, with extra space above. Installers use a level indicator to confirm alignment. They anchor the bracket firmly, using rust-proof screws and bolts. For elevated installations, they ensure the bracket can withstand wind, snow, or seismic activity. Anti-vibration pads or mounts go between the bracket and the unit to reduce noise.

Placing Unit

After securing the bracket, installers lift the air conditioner outdoor unit onto the bracket. They align the unit with mounting holes and attach it using vibration grommets. The unit should tilt slightly backward to allow proper drainage and prevent water pooling. Installers check the manual for the correct tilt angle. They confirm that the unit sits flat and does not overhang the bracket.

Final Check

Technicians perform a final inspection. They test the stability of the bracket and unit. All screws and bolts must be tight. They verify that the unit has proper clearance for airflow and maintenance. Installers check for secure mounting and confirm that drainage works as intended. This step helps prevent rust, corrosion, and electrical damage.

Note: Skipping any step can lead to instability, leaks, or bracket failure. Always follow installation instructions carefully.

DIY vs. Professional

DIY Pros & Cons

Many homeowners consider installing an air conditioner outdoor unit bracket themselves. DIY installation can save money and offer flexibility. Tool-free and easy-install brackets make the process simpler. However, common mistakes include using the wrong bracket type, improper measurements, incorrect tilt angle, and failing to secure the bracket properly. Low-quality materials and poor stability checks can result in unsafe installations.

When to Hire

Professional installation is recommended in several situations. In snowy climates, technicians elevate the unit to prevent snow buildup. Flood-prone areas require raised brackets to meet local codes. Some neighborhoods have restrictions on visible equipment or specific mounting heights. Professionals understand these requirements and ensure compliance. They also have experience with heavy units and complex installations.

Tip: Hire a professional if the installation involves structural changes, code compliance, or challenging environments. Proper installation protects the air conditioner outdoor unit bracket and extends its lifespan.

Maintenance & Safety

Regular Inspection

What to Check

Routine inspection helps maintain the safety and performance of the air conditioner outdoor unit bracket. Technicians check for loose bolts, cracks in the bracket, and signs of rust or corrosion. They look for vibration marks or movement that could indicate instability. Inspectors also examine the bracket’s connection to the wall or floor, ensuring it remains secure. They verify that the bracket supports the unit’s weight and that no part of the air conditioner outdoor unit bracket sags or tilts. Checking for proper drainage prevents water pooling, which can cause rust and electrical damage. Technicians inspect the area around the unit for debris, leaves, or standing water.

Tip: Schedule inspections every six months to catch problems early and extend the life of the bracket.

Cleaning & Rust Prevention

Cleaning Methods

Keeping the air conditioner outdoor unit bracket clean reduces the risk of rust and improves airflow. Technicians remove dirt and debris from the bracket and the surrounding area. They use a garden hose to rinse off dust and leaves. A leaf blower clears away larger debris. Cleaning the AC filters every two weeks prevents dirt buildup inside the unit. Technicians clean the coils every two months with a soft brush or cleaner. They also clear drain lines to stop moisture from accumulating, which can lead to rust.

• - Remove debris from the bracket and nearby ground.

• - Rinse the bracket and outdoor unit with water.

• - Use a leaf blower for quick cleaning.

• - Clean AC filters and coils regularly.

• - Clear drain lines to prevent moisture buildup.

Anti-Rust Treatments

Rust prevention protects the air conditioner outdoor unit bracket from damage. Technicians apply anti-rust coatings to create a moisture barrier. Units near coastal areas benefit from rust-prohibitive finishes. Keeping the bracket dry reduces rust risk. Inspectors check for standing water and elevate the unit if necessary. Tilting the unit slightly helps drainage and prevents water pooling. Using a waterproof cover when the unit is not in use minimizes moisture exposure. Annual professional inspections help detect and prevent rust before it spreads.

Tightening & Adjustments

Frequency

Technicians tighten bolts and screws on the air conditioner outdoor unit bracket during every inspection. They check for movement or vibration that could loosen fasteners. Adjustments keep the bracket stable and prevent damage to the unit. In areas with strong winds or frequent storms, tightening may be needed more often.

Signs of Wear

Signs of wear include rust spots, cracks, and bent metal. Loose bolts or shifting brackets indicate the need for immediate adjustment. Technicians look for vibration marks or unusual noises during operation. If the bracket sags or the unit tilts, they address the problem quickly to avoid further damage. Regular maintenance ensures the air conditioner outdoor unit bracket remains safe and reliable.

Safety Precautions

Load Capacity

Installers must always verify the load capacity of the air conditioner outdoor unit bracket before beginning any maintenance or installation. Each bracket comes with a specific weight rating. Exceeding this limit can cause the bracket to bend, crack, or fail. Heavy-duty brackets support larger units, but technicians should check the manufacturer's specifications for both the bracket and the air conditioner. Proper load management prevents accidents and protects the unit from falling or shifting.

Technicians should never guess the weight of the unit. They must use a scale or refer to the product manual. Overloading the bracket increases the risk of property damage and personal injury.

Secure Mounting

A secure mounting ensures the air conditioner outdoor unit bracket remains stable during operation and severe weather. Installers must anchor the bracket to a solid surface, such as concrete or reinforced masonry. Loose bolts or unstable surfaces can lead to vibration, noise, and eventual failure. Technicians should inspect the installation site for hazards like protruding nails or uneven ground. They must wear personal protective equipment, including gloves and safety goggles, to prevent injuries.

Tip: Always follow the manufacturer's instructions for mounting procedures. Proper training helps workers identify and report potential hazards quickly.

Installers should use rust-proof hardware and vibration grommets to minimize movement. Regular checks for tightness and alignment help maintain stability. Emergency procedures and protocols should be in place for swift responses to incidents.

Weather Protection

Weather protection plays a vital role in the longevity and safety of the air conditioner outdoor unit bracket. Exposure to rain, snow, and humidity can accelerate corrosion and weaken the bracket. Technicians should select brackets with weatherproof coatings, such as powder-coated steel or galvanized finishes. These materials resist rust and maintain structural integrity over time.

Installers must ensure the bracket allows for proper drainage. A slight tilt helps water flow away from the unit, reducing the risk of pooling and rust. In regions with heavy rainfall or snow, elevated brackets prevent water damage and keep the unit above flood levels. Regular cleaning removes debris that can trap moisture and cause corrosion.

Checklist for Weather Protection:

• - Choose brackets with corrosion-resistant materials.

• - Confirm proper drainage and tilt.

• - Clean debris from around the unit.

• - Inspect coatings for signs of wear or damage.

By following these safety precautions, technicians protect both the air conditioner outdoor unit bracket and the AC system. Regular attention to load capacity, secure mounting, and weather protection ensures reliable performance and reduces the risk of accidents.

Troubleshooting & Cost

Common Issues

Air conditioner outdoor unit brackets can face several problems during their lifespan. Regular use and exposure to the elements can cause these issues. Homeowners and technicians should know what to look for to keep the system safe and efficient.

Loose Brackets

• - Screws, bolts, and panels may loosen over time.

• - Weather changes and continuous AC operation can cause rattling or shaking.

• - Loose brackets can lead to instability and noise.

Rust

• - Moisture and humidity can cause rust on metal brackets.

• - Rust weakens the bracket and may lead to failure.

• - Coastal areas and rainy climates increase the risk of corrosion.

Vibration

• - Poor installation or uneven surfaces can cause vibrations.

• - Vibrations may wear down connections and create noise.

• - Debris, such as leaves or yard waste, can build up and make the unit vibrate.

Misalignment

• - Incorrect placement can cause the unit to tilt or sag.

• - Misalignment affects drainage and may lead to water pooling.

• - Poor alignment can stress refrigerant lines and reduce efficiency.

Regular inspections help catch these problems early and prevent costly repairs.

Solutions

Technicians use several methods to fix issues with air conditioner outdoor unit brackets. The right solution depends on the problem and the bracket type. The table below shows common features that help address misalignment and vibration:

To fix loose brackets, technicians tighten all bolts and screws. For rust, they clean the area and apply anti-rust coatings or replace the bracket if needed. Vibration issues often need better alignment, vibration pads, or shock absorbers. Misalignment requires repositioning the bracket and checking for proper tilt and drainage.

Tip: Using brackets with vibration control and corrosion-resistant materials helps prevent many common problems.

Cost Overview

Understanding the costs of air conditioner outdoor unit brackets helps homeowners plan for installation and maintenance. Prices depend on bracket type, material, and installation complexity.

Bracket Prices

Brackets made from powder-coated steel or galvanized materials usually cost more but last longer. Adjustable and heavy-duty brackets may have higher prices due to added features.

Installation Costs

• - Installation costs change by region because labor rates differ.

• - Complex installations, such as those on rooftops or with special supports, cost more.

Maintenance Expenses

• - Regular inspections and tightening may cost $50 to $150 per visit.

• - Cleaning and anti-rust treatments add to yearly expenses.

• - Replacing a rusted or damaged bracket can cost $50 to $200, depending on the type.

Keeping the air conditioner outdoor unit bracket in good condition reduces long-term costs and prevents major repairs.

A well-chosen and well-maintained air conditioner outdoor unit bracket protects the AC system and saves money over time. Homeowners should budget for both installation and ongoing care to ensure safe and reliable operation.

Choosing the right air conditioner outdoor unit bracket ensures long-term safety and efficiency. Proper installation prevents airflow restrictions, protects against weather damage, and reduces noise. Regular maintenance keeps the bracket secure and the unit running smoothly.

When selecting a bracket or supplier, consider technical standards, durability, and after-sales support. For reliable air conditioner outdoor unit brackets and expert guidance, customers can trust JIAHAO.

FAQ

What is an air conditioner outdoor unit bracket?

An air conditioner outdoor unit bracket is a support structure that holds the AC’s outdoor unit securely in place. It helps prevent movement, improves airflow, and protects the unit from weather and ground contact.

How do I know which bracket size to choose?

Check the weight and dimensions of the outdoor unit. Select a bracket that matches or exceeds the unit’s weight and fits its base. Always review the manufacturer’s recommendations for compatibility.

Can I install an air conditioner outdoor unit bracket myself?

Many brackets offer easy installation, but professional help ensures safety and code compliance. DIY installation may save money, but mistakes can lead to instability or damage.

How often should I inspect the bracket?

Inspect the air conditioner outdoor unit bracket every six months. Look for rust, loose bolts, cracks, or signs of wear. Regular checks help prevent failures and extend the bracket’s lifespan.

What materials last longest for outdoor brackets?

Stainless steel and galvanized steel brackets last the longest. These materials resist rust and corrosion, making them ideal for outdoor use in harsh climates.

Why does my bracket vibrate or make noise?

Vibration often results from loose bolts, uneven surfaces, or missing anti-vibration pads. Tighten all fasteners and use vibration-dampening accessories to reduce noise.

Are there special brackets for coastal or rainy areas?

Yes. Brackets with weatherproof coatings or made from stainless steel or galvanized steel protect against rust and corrosion. These options work best in humid, coastal, or rainy environments.

What should I do if my bracket shows signs of rust?

Clean the affected area and apply an anti-rust coating. If the rust is severe, replace the air conditioner outdoor unit bracket to maintain safety and support.
