When HVAC systems fail unexpectedly, the culprit often lurks in the smallest components. Among these critical yet overlooked parts, the filter drier stands as a silent guardian protecting the entire refrigeration cycle. Understanding what this component does can save homeowners thousands in repair costs and prevent premature system failure.

Every air conditioning and refrigeration system relies on clean, dry refrigerant to function efficiently. Moisture and contaminants are the enemies of these systems, causing corrosion, freezing, and compressor damage. This is precisely where the filter drier becomes indispensable, working tirelessly to maintain system integrity.

Understanding the Filter Drier's Primary Functions

The filter drier serves three essential functions in HVAC systems that work simultaneously to protect the refrigeration circuit. Each function addresses specific threats that can compromise system performance and reliability.

Moisture Removal: The First Line of Defense

Moisture represents one of the most destructive elements in refrigeration systems. Even small amounts of water can freeze at expansion devices, blocking refrigerant flow and causing system shutdown. The desiccant material inside the filter drier—typically molecular sieve or activated alumina—absorbs moisture molecules from the refrigerant as it passes through.

According to industry standards, refrigerant systems should maintain moisture levels below 50 parts per million (ppm) for optimal performance. The filter drier's desiccant can absorb moisture until it reaches saturation, at which point replacement becomes necessary.

Acid Neutralization for System Protection

When moisture combines with refrigerant and oil under high temperatures, acids form within the system. These acids attack metal components, particularly copper tubing and compressor windings, leading to premature failure. The filter drier contains acid-neutralizing compounds that chemically react with these harmful substances, converting them into inert materials.

Filtration of Solid Contaminants

The filter drier's screen and core material trap solid particles such as metal shavings, dirt, oxidation byproducts, and solder flux. These contaminants can damage compressor valves, clog expansion devices, and accelerate wear throughout the system. HVAC copper filter drier models typically feature mesh screens ranging from 25 to 100 microns, effectively capturing particles that could cause mechanical damage.

How Filter Driers Work: The Technical Process

The operating principle of a filter drier combines physical filtration with chemical absorption. As liquid refrigerant enters the component from the condenser, it encounters multiple stages of purification designed to remove different types of contaminants.

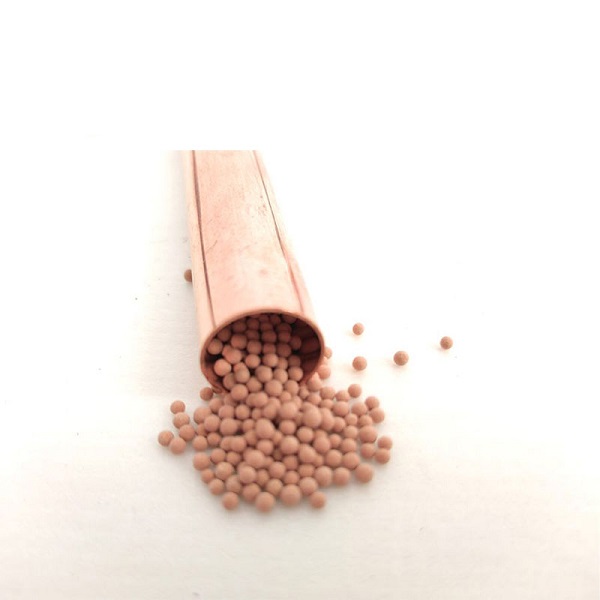

The refrigerant first passes through an inlet screen that captures larger particles. It then flows through the desiccant bed, where molecular sieve beads create a vast surface area for moisture and acid absorption. The molecular structure of these beads contains precisely sized pores that trap water molecules while allowing refrigerant to pass freely. Technical research indicates that properly functioning desiccants can reduce moisture content by up to 99% in a single pass through the filter drier.

Finally, the refrigerant exits through an outlet screen that provides a final filtration stage. This multi-barrier approach ensures comprehensive protection for downstream components, particularly the expansion valve and evaporator coil.

Types of Filter Driers and Their Applications

Different HVAC applications require specific filter drier designs. Understanding these variations helps professionals select the appropriate component for each system.

Liquid Line vs. Suction Line Driers

The most common filter drier installation occurs in the liquid line between the condenser and expansion valve. This location maximizes moisture and contaminant removal before refrigerant reaches critical metering devices. Liquid line driers handle high-pressure refrigerant and must withstand working pressures up to 600 PSI depending on the refrigerant type.

Suction line driers serve a specialized purpose, typically installed temporarily after compressor burnouts to capture acid and carbon residue. These units protect the replacement compressor during the critical break-in period when contaminant levels peak.

Sizing and Selection Criteria

Proper sizing determines filter drier effectiveness and system performance. Undersized units create excessive pressure drop, forcing compressors to work harder and reducing efficiency. Oversized driers waste money without providing additional benefits.

According to ISO 5149 standards for refrigeration systems, technicians should select filter driers based on system tonnage, refrigerant type, and connection size. The pressure drop across the drier should not exceed 2 PSI under normal operating conditions. Higher pressure drops indicate either improper sizing or desiccant saturation requiring replacement.

Connection methods include flare, solder, and threaded options. Brazed copper connections provide the most reliable, leak-resistant installation for permanent applications. The copper construction ensures compatibility with all common refrigerants and provides excellent heat transfer characteristics.

Installation Best Practices

Professional installation directly impacts filter drier performance and longevity. Several critical steps ensure optimal operation and prevent contamination during the installation process.

Pre-Installation Preparation

Filter driers arrive sealed to prevent moisture absorption before installation. Technicians should only remove end caps immediately before brazing to minimize desiccant exposure to atmospheric moisture. The arrow on the drier body must align with refrigerant flow direction—installing backward renders the component ineffective.

When brazing connections, proper heat management prevents desiccant damage. Excessive heat destroys the molecular structure of moisture-absorbing materials, reducing capacity significantly. Professional technicians use wet rags as heat sinks and purge nitrogen through the drier during brazing to prevent oxidation and protect internal components.

Location Considerations

Installing the filter drier vertically with flow from bottom to top optimizes performance by preventing oil trapping. The location should allow easy access for future replacement while avoiding areas subject to mechanical damage or extreme temperatures. Mounting near the condenser in the liquid line provides ideal positioning for most residential and light commercial applications.

When to Replace Filter Driers

Filter drier replacement frequency depends on system conditions and service history. Understanding replacement timing prevents performance issues and extends equipment life.

Mandatory replacement situations include any time the refrigeration system opens for repairs, after compressor replacement, following refrigerant contamination, or when adding significant refrigerant quantities. The filter drier's desiccant cannot be regenerated once saturated, making replacement the only solution.

Proactive replacement during routine maintenance every 5-7 years prevents age-related failures. Even without system opening, desiccants gradually lose effectiveness due to the continuous absorption of trace moisture and acids. Systems operating in humid climates or those with minor leaks may require more frequent replacement.

Warning Signs of Filter Drier Problems

Several symptoms indicate filter drier saturation or failure requiring immediate attention:

• Temperature difference across the drier exceeding 3°F suggests restricted flow

• Frost formation on the drier body indicates moisture freezing at the restriction point

• Reduced cooling capacity despite proper refrigerant charge points to flow restriction

• Higher than normal subcooling measurements suggest liquid line blockage

• Acid test results indicating pH below 4.5 reveal desiccant saturation

Impact on System Efficiency and Performance

The filter drier's condition directly affects overall system performance and energy consumption. Research from International Journal of Refrigeration indicates that a properly functioning drier maintains system efficiency within design specifications, while a saturated or restricted unit can reduce capacity by 15-25%.

Clean, dry refrigerant enables precise expansion valve operation, maintaining optimal evaporator performance. Moisture contamination causes erratic valve behavior, leading to superheat fluctuations and reduced heat transfer efficiency. Technical studies demonstrate that even 100 ppm moisture concentration can decrease system efficiency by 8-12% while accelerating component wear.

Beyond immediate performance impacts, the filter drier plays a crucial role in preventing costly failures. Compressor replacements typically cost $1,800-$3,500 for residential systems in 2026, while the filter drier investment ranges from $20-$120 depending on size and type. This dramatic cost difference underscores the component's value as preventive protection.

Maintenance and Monitoring Strategies

While filter driers require no routine maintenance, monitoring their condition helps prevent unexpected failures. Professional HVAC technicians employ several diagnostic techniques during service calls.

Temperature measurement across the drier provides immediate performance feedback. Using calibrated thermometers or infrared cameras, technicians compare inlet and outlet temperatures. Any difference exceeding 2-3°F warrants investigation and potential replacement.

Advanced diagnostics include pressure drop testing using manifold gauges installed temporarily at the drier's inlet and outlet. Excessive pressure drop confirms restriction, while acid testing of refrigerant samples reveals whether the desiccant still neutralizes contaminants effectively.

Common Mistakes to Avoid

Understanding common installation and service errors helps ensure proper filter drier performance and prevents system damage.

One frequent mistake involves reusing old driers during system repairs. Once exposed to contaminated refrigerant, the desiccant saturates partially and cannot provide full protection for the repaired system. The minimal cost savings never justifies the risk of premature failure.

Another critical error occurs when technicians leave drier end caps removed for extended periods before installation. Every minute of atmospheric exposure allows moisture absorption, reducing available capacity before the component even enters service. Professional practice dictates removing caps only immediately before brazing connections.

Incorrect flow direction represents perhaps the most damaging mistake. Installing the drier backward prevents proper filtration and can dislodge desiccant material, sending it downstream to damage compressor valves. Always verify the directional arrow aligns with refrigerant flow before completing installation.

Environmental and Regulatory Considerations

Filter drier selection and disposal involve environmental responsibilities that responsible HVAC professionals must observe. Modern refrigerants require specific desiccant formulations for optimal compatibility and performance.

Refrigerants like R-410A, R-32, and R-454B demand XH-series molecular sieves designed for high-pressure applications and superior moisture capacity. Using older desiccant types with these refrigerants can lead to premature saturation and system contamination.

Disposal procedures require removing residual refrigerant before discarding used driers. EPA Section 608 regulations mandate proper recovery of all refrigerants to prevent atmospheric release. Responsible contractors include drier replacement costs and disposal fees in service estimates, ensuring compliance while protecting the environment.

Cost Analysis and Return on Investment

Evaluating filter drier costs within the broader system context reveals their exceptional value proposition for HVAC system protection.

The return on investment becomes clear when comparing the total drier cost of $200-$470 against potential failure costs exceeding $2,500. Additionally, maintaining system efficiency prevents annual energy waste worth hundreds of dollars over the equipment's lifespan.

Conclusion

The filter drier stands as an essential component in HVAC systems, providing critical protection through moisture removal, acid neutralization, and contaminant filtration. Its modest cost and simple installation belie the tremendous value it delivers by preventing expensive failures and maintaining system efficiency.

Understanding what a filter drier does empowers homeowners and facility managers to make informed decisions about system maintenance and repairs. Regular replacement during service work, proper sizing and installation, and awareness of failure symptoms ensure this small component continues protecting expensive equipment for years to come.

As HVAC technology evolves with new refrigerants and higher efficiency standards, the filter drier's role becomes even more critical. Modern systems operate at tighter tolerances with less margin for contamination, making proper filtration and drying absolutely essential for reliable operation. Investing in quality components and professional installation remains the smartest strategy for long-term system performance and cost control.
