How to Extend AC Copper Pipe: A Complete Professional Guide for 2026
Oct 14, 2026|
View:54Extending an AC copper pipe is one of the most common jobs on retrofit, relocation and repair projects — and one of the most failure-prone when done without the right procedure. This 2026 update of our professional guide covers when an extension is safe, how to braze a leak-proof joint with nitrogen purging, when couplings or flare connections make sense, and how to pressure-test, evacuate and recharge the system correctly. Jiahao manufactures the copper line sets and copper couplings used in these procedures, so the guidance below reflects production-floor and QC experience as well as published HVAC practice.
Key Takeaways
Brazing with a nitrogen purge is the only method recommended for permanent refrigerant-line extensions.
Extend only clean, undamaged Type L copper; replace lines with corrosion, dents or multiple repair joints.
Extensions beyond about 25 ft usually require additional refrigerant charge; beyond 50 ft, review the size with the OEM table.
Pressure-test extended joints at 250–400 PSI for at least 45 minutes and evacuate below 500 microns before charging.
Match the coupling ID to the tube OD (0.002–0.005 in. gap) and use silver-bearing brazing alloy — never plumbing solder.
Insulate the full extended run with minimum 1/2" closed-cell foam and seal every seam.
In This Guide
Understanding AC Copper Pipe Extension Requirements
When Extension Becomes Necessary
Homeowners relocating an outdoor condenser farther from the building, installations with unusual layouts, and replacement systems with different specifications all commonly require line extensions. Standard pre-charged line sets typically come in 15, 25 or 50 ft lengths, and when none of those fits the measured distance, a professional extension is the practical solution.
Extend or Replace? A Quick Check
Existing lines are good candidates for extension when they are clean, free of corrosion and dents, show no previous leak repairs, and match the new unit’s required diameters. Replace them instead when they are contaminated, visibly degraded, wrong-sized, or came from an old R-22 system that will now carry R-410A or R-32. If the total run will push the pipe beyond the standard sizing, start from our AC copper pipe size chart guide before choosing the tube diameter.
Maximum Extension Limits and System Performance
Most residential split systems operate optimally with total line lengths between 15 and 50 ft. Extensions beyond 50 ft increase pressure drop and refrigerant-charge requirements and can reduce efficiency noticeably. Manufacturers specify maximum allowable line lengths in installation manuals and design data[1]; exceeding those limits may void warranty coverage.
Essential Tools and Materials for Copper Pipe Extension
Required Professional Equipment
A successful AC copper pipe coupling installation requires specific tools and materials. Professional HVAC technicians rely on the following equipment:
Tube Cutter: Produces clean, square cuts without deforming copper tubing.
Deburring Tool: Removes internal and external burrs from cut pipe ends.
Brazing Torch: Oxy-acetylene or MAPP gas torch capable of reaching 1200°F minimum.
Silver Brazing Rods: 15–45% silver content rated for HVAC applications.
Nitrogen Tank with Regulator: For purging lines during brazing to prevent oxidation.
Pressure Gauges: To test system integrity after installation.
Vacuum Pump: Removes air and moisture from extended lines.
Refrigerant Scale: For precise refrigerant charging when extensions exceed 25 ft.

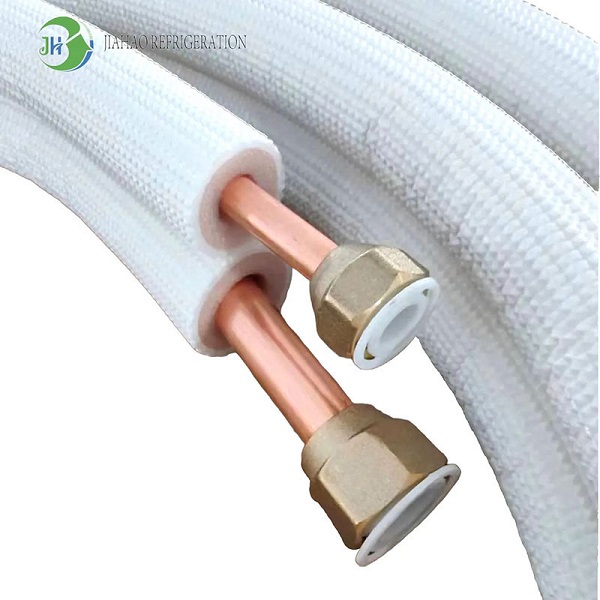

Selecting Appropriate Copper Couplings
The quality and type of AC copper pipe coupling fittings directly impact connection reliability. Straight couplings join two pipes of identical diameter, while reducing couplings connect different pipe sizes. Professional-grade couplings manufactured from high-purity copper provide optimal thermal conductivity and corrosion resistance.
Standard HVAC systems use Type L copper tubing with wall thicknesses suitable for refrigerant pressures. The coupling inner diameter should match the tubing outer diameter precisely, with a gap between 0.002 and 0.005 inches to ensure proper capillary action during brazing.
Step-by-Step Brazing Method for Pipe Extension
Surface Preparation and Cleaning
Proper preparation ensures strong, leak-free brazed joints. Cut the existing and new copper sections with a tube cutter, keeping the cuts perfectly square, then deburr both internal and external edges thoroughly so no metal fragments enter the refrigeration system.
Clean the surfaces to be joined with fine-grit emery cloth or a dedicated copper cleaning pad until bare copper shows a bright, shiny finish. Clean at least one inch beyond the coupling on each pipe section — any remaining contamination compromises brazing quality and can lead to premature joint failure.
Nitrogen Purging During Brazing
Nitrogen purging is the step that separates professional installations from amateur work. Copper heated above about 1200°F oxidizes rapidly in air, forming black copper-oxide scale on internal pipe surfaces. That scale circulates through the refrigeration system and can damage compressors, expansion valves and other sensitive components.
Connect the nitrogen supply to one end of the line section being brazed and leave the opposite end slightly open to allow gas flow. Maintain flow throughout heating and cooling. The low-pressure nitrogen atmosphere prevents oxidation while allowing the brazing filler metal to flow properly.
Brazing Process Execution
With surfaces clean and nitrogen flowing, assemble the coupling with the pipe sections and heat the joint evenly with a circular torch movement, focusing heat on the coupling rather than the pipe. Copper’s excellent thermal conductivity[2] transfers heat efficiently to all joint surfaces.
When the coupling reaches brazing temperature — indicated by a dull red glow in low light — touch the brazing rod to the joint and let capillary action draw molten filler into the microscopic gap. Feed the rod gradually while maintaining heat until filler flows completely around the joint. A properly filled joint shows a continuous fillet at the coupling edge.
| Brazing Parameter | Specification | Purpose |
|---|---|---|
| Brazing Temperature | 1175–1400°F | Melts silver-bearing brazing alloys |
| Silver Content | 15–45% | Determines strength and melting point |
| Nitrogen Flow Rate | 3–5 CFH | Prevents internal oxidation |
| Joint Gap | 0.002–0.005 inches | Optimal capillary action |
| Cooling Time | Natural cooling | Prevents stress fractures |
Post-Brazing Inspection
Allow joints to cool naturally — never use water or forced air, since rapid cooling creates internal stresses and microscopic cracks. Keep nitrogen flowing until joints cool below 200°F to prevent late-stage oxidation.
Once cool, inspect each joint around the full circumference. Quality joints show smooth, continuous fillets without gaps, excessive buildup or irregular surfaces. Defects require reheating and adding brazing material.
Alternative Extension Methods: Couplings, Flare and Compression
Flare Connection Systems
Flare connections use mechanical compression rather than thermal bonding, making them reversible and useful where future disassembly is expected. A flaring tool expands the pipe end into a 45-degree cone that seats against a matching surface, with a flare nut providing compression force.
Flare connections work well on service ports, but they remain vulnerable to vibration loosening, thermal cycling stress and installation error. Most HVAC professionals reserve flares for service points and temporary installations rather than permanent line extensions.
Compression Fitting Applications
Compression fittings deform a ferrule around the pipe as the nut tightens. They suit low-pressure applications but are generally unsuitable for refrigerant lines operating above roughly 300 PSI — which is why brazing remains the standard for permanent extensions.

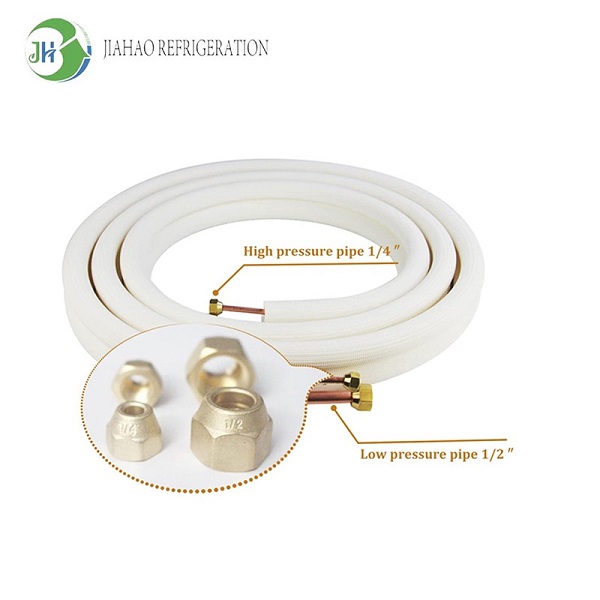

Proper Insulation of Extended Copper Lines
Insulation Material Selection
Extended air conditioner copper line sections need proper insulation to prevent energy loss and condensation. Closed-cell foam insulation designed for HVAC provides the best thermal resistance and moisture-vapor barrier.
Insulation thickness varies with line size and ambient conditions. The cold suction line needs more insulation than the warm liquid line. Standard practice specifies minimum 1/2-inch wall thickness for suction lines up to 7/8 inch diameter, and 3/4-inch thickness for larger lines.
Installation Best Practices
Apply insulation after pressure testing and evacuation but before refrigerant charging. Slide it over the pipe, split lengthwise where needed, and seal all seams with outdoor-rated adhesive. Joints near couplings need complete coverage without gaps.
Secure insulation at regular intervals with UV-resistant cable ties or support brackets. Outdoor runs need extra protection from weather and physical damage, typically PVC conduit, metal channel or specialized insulation jacketing.
Pressure Testing and System Evacuation
Leak Detection Procedures
After completing the AC copper pipe coupling joints, pressure testing[3] verifies connection integrity before refrigerant charging. Professional practice pressurizes the entire system with dry nitrogen to 250–400 PSI — significantly above normal operating pressures — and monitors for a minimum of 45 minutes, with many professionals holding 4–24 hours on critical jobs. Any pressure drop means a leak; electronic detectors or soap solution pinpoint the location.
Vacuum Evacuation Requirements
After a successful pressure test, evacuate the system with a two-stage vacuum pump to below 500 microns. This removes air, testing nitrogen and moisture from the extended sections. Moisture causes reduced efficiency, corrosion and compressor damage, so refrigerant handling should follow EPA Section 608[4] practices.
Connect the pump to the service ports and run until pressure reaches 500 microns or below, then isolate the pump and monitor for 10–15 minutes. Rising pressure indicates a leak or residual moisture vaporizing under vacuum.
| Testing Phase | Pressure/Vacuum Level | Duration |
|---|---|---|
| Initial Pressure Test | 250–400 PSI | 45 minutes minimum |
| Extended Hold Test | 250–400 PSI | 4–24 hours (recommended) |
| System Evacuation | Below 500 microns | Until stable reading achieved |
| Standing Vacuum Test | Below 500 microns | 10–15 minutes |
Refrigerant Charging After Extension
Calculating Additional Refrigerant Requirements
Extended air conditioner copper line runs increase total system volume, so the system needs more refrigerant. Manufacturers publish the charge per foot of additional line by tube diameter and refrigerant type. As a general reference: roughly 0.6 ounces per foot for 1/4-inch liquid lines and 2.0 ounces per foot for 3/8-inch suction lines; larger diameters need proportionally more.
Charging Methods and Verification
Add refrigerant by the approved method for the system and refrigerant type, then verify the charge with subcooling or superheat measurements against the manufacturer’s specifications. Undercharged systems show weak cooling and high compressor temperatures; overcharged systems show high head pressures and reduced efficiency. Use a refrigerant scale for precise weight on critical-charge systems.
Common Mistakes to Avoid
Critical Installation Errors
Brazing without a nitrogen purge tops the list of mistakes that shorten system life. Copper-oxide scale formed during heating gradually damages internal components and can reduce compressor lifespan by years.
Inadequate joint preparation — incomplete cleaning or deburring — creates weak bonds prone to leaks. Contaminants prevent filler adhesion, and burrs create turbulence that stresses joints in operation.
System Performance Issues
Over-long extensions without charge adjustment cause chronic undercharge. The system may seem to work at first, then show reduced capacity, icing and premature component failure. Always calculate and add the correct charge for the extended length.
Incomplete insulation coverage creates condensation and energy waste. Moisture from uninsulated cold lines damages building materials and can support mold growth — complete, continuous coverage prevents these problems.
Professional Installation Benefits
Quality Assurance and Warranty Protection
Licensed HVAC technicians bring the equipment, training and insurance that keep extended air conditioner copper line systems reliable for decades. Manufacturer warranties typically require professional installation by certified technicians; unlicensed work voids coverage and can cost thousands in unprotected repairs. Professional work also satisfies local building codes and permit requirements.
Safety Considerations
Refrigerant systems carry real hazards: high-pressure refrigerant can cause severe cold burns or asphyxiation in confined spaces, and brazing torches are fire and burn risks. Trained technicians follow refrigerant handling, pressure-vessel and fire-prevention protocols with proper PPE — protecting both installers and occupants.
Need Professional AC Pipe Solutions?
When you need a trusted AC pipe manufacturer, quality matters. JIAHAO manufactures ASTM B280 copper line sets, precision couplings and fittings for HVAC professionals worldwide — factory-direct pricing, free technical advice and sample support.
Frequently Asked Questions
Can I extend AC copper pipes myself, or should I hire a professional?
Possible for experienced DIYers, but professional installation protects warranty and code compliance. The job needs brazing equipment, nitrogen, a vacuum pump and refrigerant handling tools. Professional service typically costs $300–$800 and includes insurance and permits; DIY requires $200–$500 in tools and carries leak and warranty risk.
What is the maximum length I can extend my AC copper pipes?
Most residential systems work best with total line lengths of 15–50 ft. Beyond 50 ft, efficiency drops and warranties may be voided. Always check the manufacturer’s maximum-length table, and plan on adding refrigerant when the extension exceeds about 25 ft.
Why is nitrogen purging important during brazing?
Heated copper oxidizes in air, forming black copper-oxide scale inside the pipe. That scale circulates through the system and can damage the compressor, expansion valve and other components. Nitrogen flow during brazing prevents oxidation and protects the system — it is the difference between a professional and an amateur joint.
How much does it cost to extend AC copper pipes?
Professional extensions typically run $50–$150 per foot including materials and labor, so most projects land between $300 and $1,200 depending on length and accessibility. DIY saves labor but needs $200–$500 of tools and carries leak and warranty risk.
What type of copper tubing should I use for AC line extensions?
Use Type L refrigeration-grade copper (ASTM B280), cleaned, capped and nitrogen-sealed by the manufacturer. Common sizes are 1/4 inch for liquid lines and 3/8 or 1/2 inch for suction lines, matched to the system’s OEM piping table.
Do I need to add refrigerant when extending copper pipes?
Yes, for extensions beyond roughly 25 ft. Add charge per the manufacturer’s table — commonly about 0.6 oz per foot for 1/4-inch liquid lines and 2.0 oz per foot for 3/8-inch suction lines — weighed in with a scale, then verify with subcooling or superheat.
Can I use compression fittings instead of brazing for copper pipe extensions?
Not for permanent refrigerant-line extensions. Compression fittings suit low-pressure applications but cannot reliably handle AC system pressures, vibration and thermal cycling. Brazing with silver-bearing alloy and a nitrogen purge is the professional, leak-resistant choice.
How long does a properly extended AC copper pipe last?
A properly brazed, insulated and charged extension typically lasts 15–20+ years, matching the original system. Poor technique — no nitrogen purge, thin insulation or wrong charge — can cause failures within 2–5 years.
Conclusion
Extending an AC copper pipe comes down to honest assessment first — extend only clean, correctly sized lines — then disciplined execution: proper surface prep, nitrogen purging, silver-bearing brazing, full insulation, a 250–400 PSI pressure test, evacuation below 500 microns and the right added refrigerant charge.
When the project is beyond your comfort zone, professional HVAC service protects warranty, code compliance and performance. And when you need the materials themselves — copper line sets, couplings and fittings — JIAHAO supplies ASTM B280 products with factory-direct pricing and technical support.
